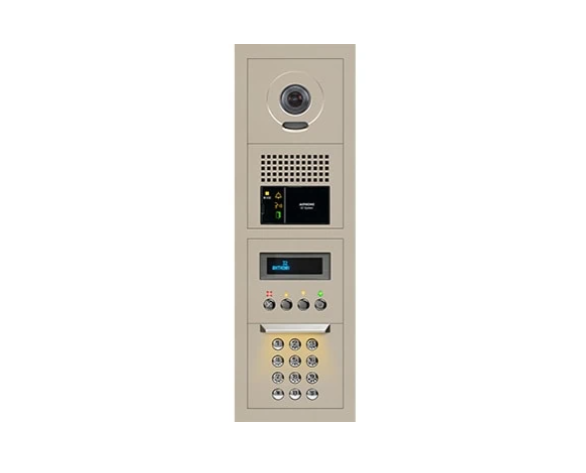

Aiphone GTV-DES104B
10-Key Video Entrance Panel Kit, 1×4 Size
- Contains GT-DB audio module, GT-VB video module, and GT-NSB digital display and directory
- GT-10K keypad for direct dialing and access control
- Includes all appropriate frames and the GT-4B flush back box
- VFD screen displays a customizable greeting message, tenant directory, and system status
- Surface mount with the stainless steel GT-104HB
Power Source
24V DC, use specified number of
PS-2420UL per system configuration
Communication:
Hands-free from entrance panel to
tenant station
Capacity:
Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit
Wire:
Two sets of 2-conductor, PE insulation
(two common buses for audio & video)
Aiphone #872002, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Audio)
Aiphone #871802, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Video)
Wiring Distance:
GT-BC to farthest entrance: 980′
GT-BC to farthest tenant (audio): 980′
GT-VBC to farthest entrance: 980′
GT-VBC to farthest tenant (video): 500′
