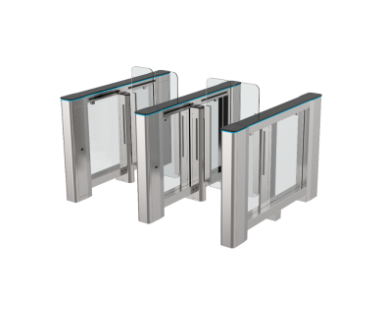

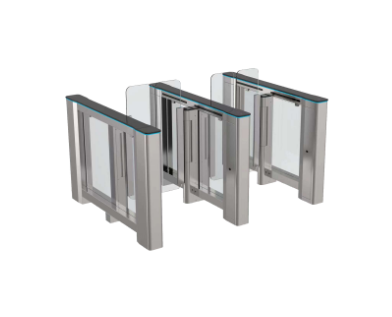

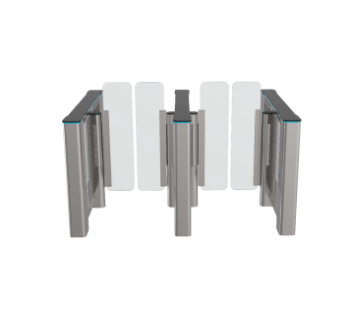

Dahua ASGB8XXH-X Swing Barrier


Swing Barrier

> The cabinet is built of 304 stainless steel that is 2.0 mm thick.

> 12 pairs of built-in IR detectors.

> Uses a DC brushless servo motor.

> Auto closes barriers when no one enters the turnstile after the specified time.

> Supports restoring the system parameters to their default values.

> Supports sound and light alarms.

> MCBF (Mean Cycles Between Failures) is more than 8 million times.

> Supports normally opening the fire passage.

> Offers mechanical anti-squeeze and IR anti-squeeze and anti-collision functions.

> Features 9 combinations of passage modes. You can build the combinations using authorized, prohibited and free for entry and exit.

> Supports configuring the speed it opens and closes, passing time for people, and delaying the closing time.

> Supports second authentication, and memorizing passing data for entry and exit.

> Supports combining multiple authentication methods together such as face, fingerprint, and QR code to create a variety of authentication methods.

> A barrier matching the width of the passage needs to be purchased separately. The barrier is not included in the package.


Main Processor

Embedded Processor


Product Type

Swing turnstile


Brushless servo motor

Status Indicator Light

Blue light glows: Standby status.
Red light flashes: Device anomaly.
Green light glows: Authenticated.
Green light flashes: Passage is allowed.



8 million times

Passage Width

600mm (23.62″)

Max Custom Passage Width

900 mm (35.43″) (Tempered glass/Acrylic)

Input Port


Passing Speed

Normally closed: 20–35 people/minute

Unlock/Lock Speed

0.8 s–1.5 s, with 1.2 s by default.

Pairs of IR Detectors

12 pairs

Top Cover Thickness

12 mm (0.47″)

Frame Thickness

2 mm (0.08″)

Barrier Thickness

10 mm (0.39″)


Network Port

1 × 10/100 Mbps self-adaptive Ethernet port


Power Supply

100–240 VAC, 50/60 Hz

Vandal-proof Rating

Artificial stone, stainless steel: IK07, swiping card panel: IK04

Power Consumption

≤50 W (standby), ≤300 W (working)

Product Dimensions

Single-motor: 1500 mm × 150 mm × 1000 mm (59.06″ × 5.91″ × 39.37″) (L × W × H)
Double-motor: 1500 mm × 280 mm × 1000 mm (59.06″ × 11.02″ × 39.37″) (L × W × H)

Gross Weight

Single-motor: 120 kg (264.55 lb)
Double-motor: 130 kg (286.60 lb)

Operating Environment


Anti-corrosion Level

Basic Protection
