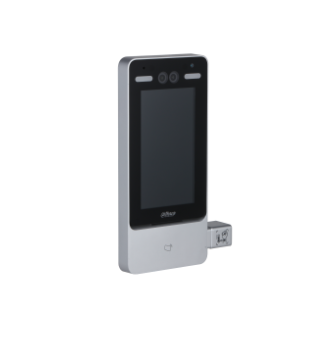

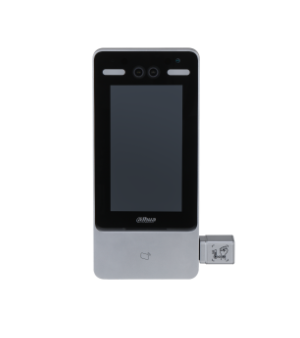

Dahua ASI7213YO-V3-T0 Face Recognition Access Standalone


Face Recognition Access Standalone

> 7-inch LCD display with resolution of 1024 × 600


> Auto fill light reduces light pollution

> Can hold 50,000 users, 50,000 face images, 50,000 cards, 50,000 password, 50 administrators, and 100,000 records

> Support face, IC card, password unlock and unlock through their combinations

> With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web

> Face-camera distance: 0.3 m–1.0 m; human height: 0.9 m–2.4 m (lens-ground distance: 1.4 m)

> With face recognition algorithm, the access controller can recognize more than 360 positions on human face

> Face recognition speed: 0.35 s per face

> Support liveness detection · Accurate recognition in backlight and front light

> Various unlock status display modes protect user privacy

> Support enabling/disabling the temperature monitoring mode; temperature monitoring range is 30°C to 45°C (86°F to 113°F); temperature monitoring distance range is 1 cm–5 cm; temperature monitoring error is ≤0.3°C; report temperature anomaly alarm

> Support mask detection, report alarm of abnormal events without wearing a mask

> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding threshold alarm

> Support general users, patrol users, VIP users, guest users, and special users

Main ProcessorEmbedded Processor
Internet ProtocolIPv4, RTSP, RTP, TCP, UDP, P2P
OSDP ProtocolYes
InteroperabilityONVIF; CGI
SDK and APISupport SDK
Display7-inch display
Screen TypeCapacitive Screen
Resolution600 (H) × 1024 (V)
Camera1/2.8″ 2MP CMOS high definition WDR dual camera
WDR120 dB
Light CompensationAuto white light
Auto IR light
Status Indicator1 indicator light. Red: Error; Green: Normal; Blue: Working
Voice PromptYes
Unlock ModeCard/Remote/Password/Face unlock and unlock through their cmbinations;
Face unlock under temperature monitoring mode;
Card Reading TypeIC card
Period List128
Holiday Period128
First-Card UnlockYes
Remote VerificationYes
Peripheral Card Reader1 Wiegand
Multiple AuthenticationYes
Real-Time SurveillanceYes
Web ConfigurationYes
Card Reading Distance5 cm
Face Recognition RangeFace-camera distance: 0.3 m–1.0 m
Human height: 0.9 m–2.4 m
Face Verification Accuracy99.5%
Face Recognition Time0.35 s
Temperature Monitoring Range30°C–45°C (86°F–113°F)
Temperature Monitoring MethodWrist
Temperature Monitoring Error≤ 0.3°C
Temperature Monitoring Environment+10°C to +40°C (+50°F to +104°F)
Temperature Monitoring Distance1cm–5cm
User Capacity50,000
Face Image Capacity50,000
Card Capacity50,000
Password Capacity50,000
Record Capacity100,000 records
Wiegand1 (input or output)
USB1 × USB2.0 port
Network1 × 100 Mbps network port
Alarm Input2 (Switch quantity)
Alarm Output2 (Relay)
Alarm LinkageYes
Exit Button1
Door Status Detection1
Lock Control1
Door Sensor TimeoutYes
Illegal Card Exceeding ThresholdYes
Power SupplyProvided
Power Supply Mode12V 1A DC
Power Consumption≤ 12W
Product Dimensions283.1 mm × 130.1 mm × 40.7 mm

(11.14″ × 5.12″ × 1.60″)

Packaging DimensionsController packging: 380 mm × 235 mm × 124 mm (14.96″ × 9.25″ × 4.88″)
Protective case: 494 mm × 402 mm × 275 mm (19.45″ × 15.83″ × 10.83″)
Operating TemperatureTemperature monitoring mode disabled: –10°C to 55°C (14°F to 131°F)
Temperature monitoring mode enabled: 10°C to 40°C (50°F to 104°F)
Operating Humidity5%RH–90%RH (non-condensing)
Gross Weight1.9 kg (4.19 lb)
InstallationBracket mount
