Suprema Input Module IM-120 Multiple Input Extension Module

描述

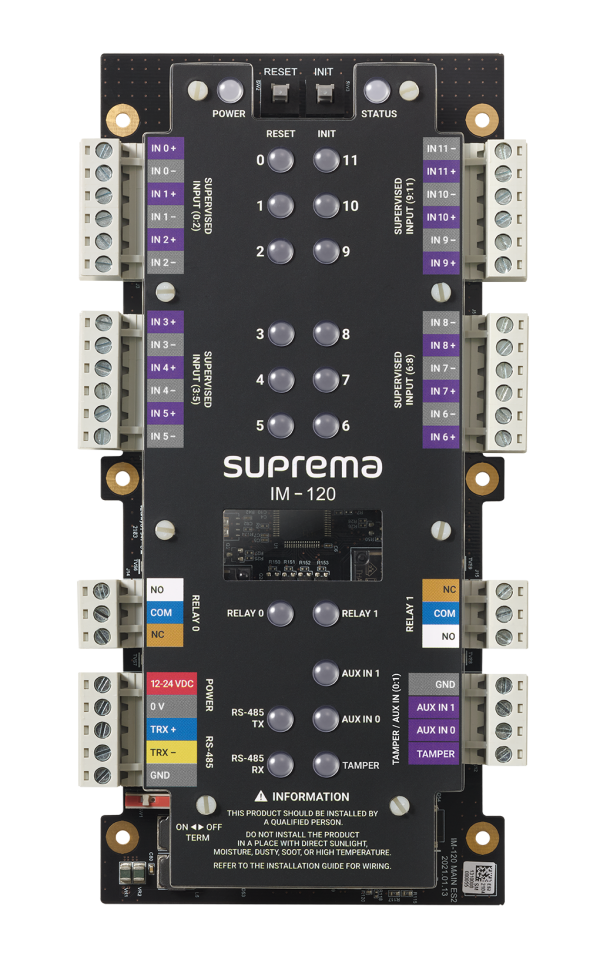

Suprema Input Module IM-120 Multiple Input Extension Module

Input Module is a multiple input extension module which can control up to 12 supervised inputs, 2 AUX, 1 temper switch and 2 relays. A total of 31 units can be connected to a master device via an RS485 daisy chain. It allows the use of inputs for interfacing with sensors or door contacts etc., as well as providing a simple ‘dry contact’ interface for other systems.



Specifications

General

• CPU: Cortex M3 72 MHz
• Memory: 512 KB Flash + 64 KB SRAM
• LED
  – Multi-color
     • Power – 1
     • Status – 1
     • RS-485 TX – 1
     • RS-485 RX – 1
     • Supervised Input – 12
     • Relay – 2
     • AUX IN – 2
     • Tamper – 1
• Operating Temperature: -20 °C ~ 60 °C
• Storage Temperature: -40 °C ~ 70 °C
• Operating Humidity: 0 % ~ 95 %, non-condensing
• Storage Humidity: 0 % ~ 95 %, non-condensing
• Dimension (W x H x D): 90 x 190 x 21 (mm)
• Weight: 203 g
• Certificates: CE, UKCA, KC, FCC, RCM, RoHS, REACH, WEEE



Interface

• Supervised Input: 12 ch (TTL Input selectable)
• RS-485: 1 ch
• Relay: 2 relays
• AUX Input: 2 ch (AC POWER FAIL)
• Tamper Input: 1 ch



Capacity

• Text Log: 10 ea per port1)



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.2 A
  • Voltage: 24 Vdc
  • Current: Max. 0.1 A
• Switch Input VIH: Max.: 5 V (Dry Contact)
• Relay: 5 A @ 30 VDC Resistive load

• Product specifications are subject to change without notice to improve.
1) For events that occur while network connection is lost, up to 10 events can be saved per port. When a port is full, each
newly logged event will replace the oldest one.
