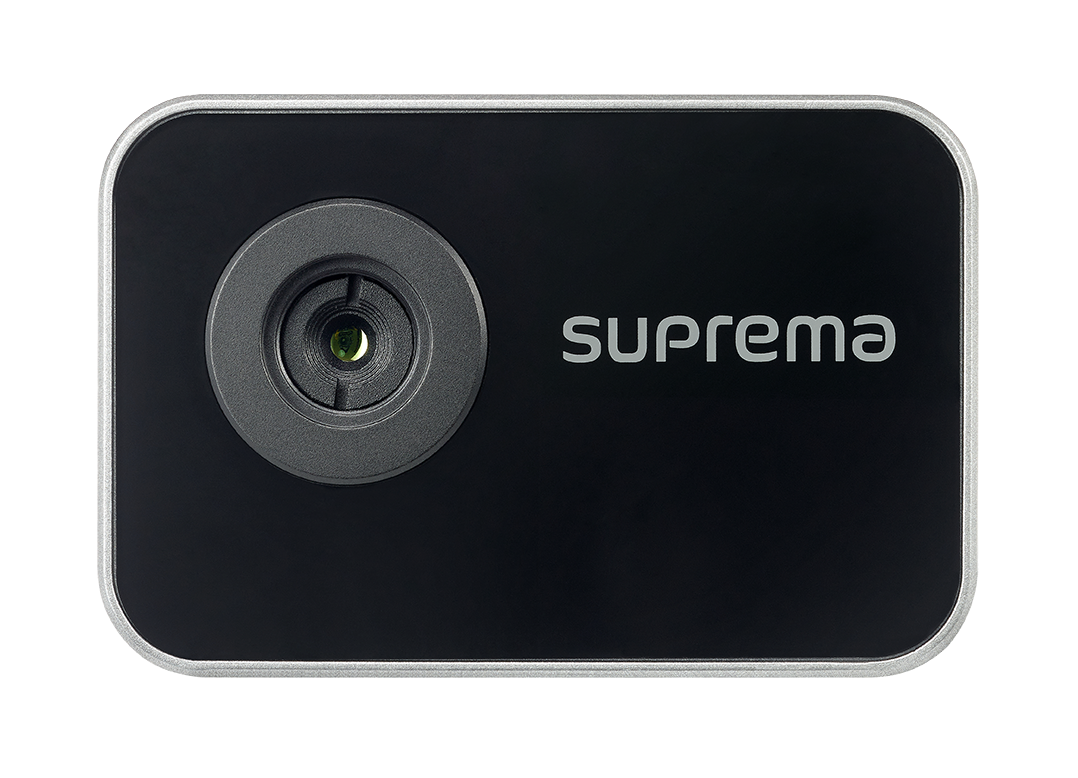

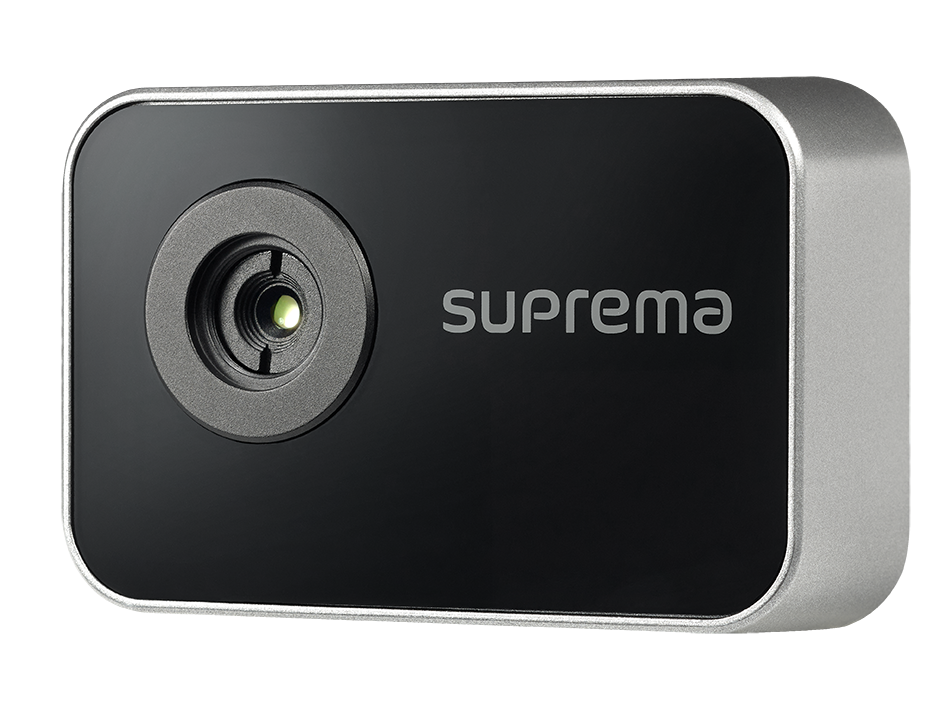

Suprema Thermal Camera Temperature Detection Module
Model:TCM10-FSF2, TCM10-FS2

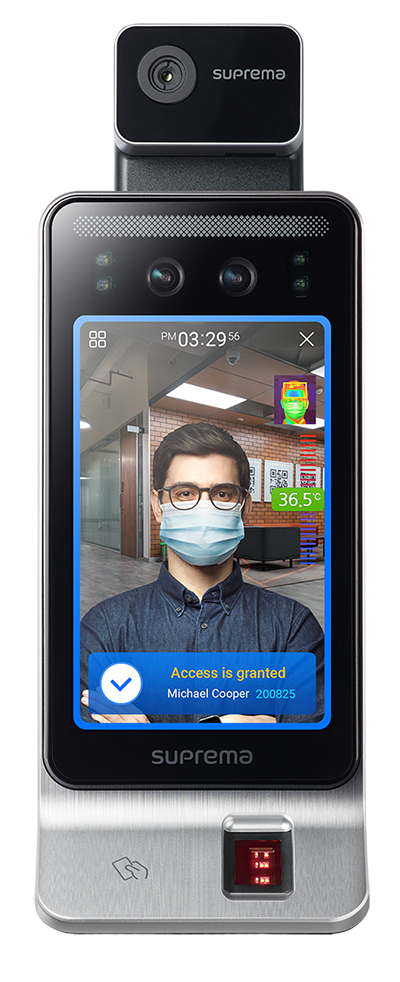

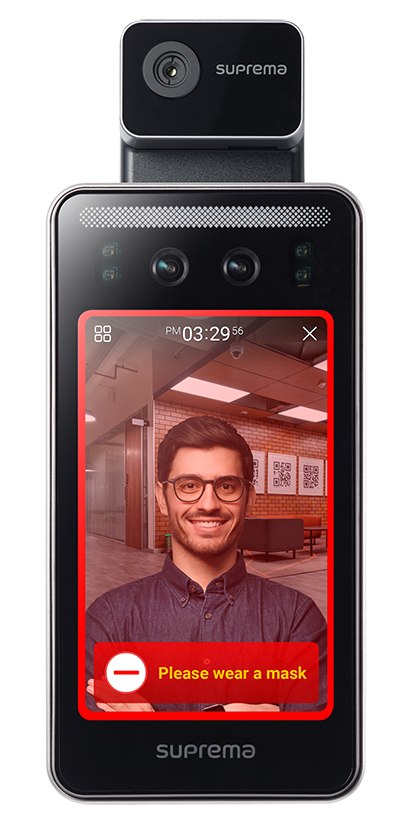

Suprema Thermal Camera can be used with Suprema facial authentication terminals to detect users with a higher body temperature.
*Disclaimer: Suprema products cannot be used to diagnose any medical condition. Suprema thermal cameras can only identify individuals with skin temperature higher than a preset figure but should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other illness.
-specifications(Model:TCM10-FSF2)
Thermal Module
- Max. Resolution: 120 × 160
- NETD (Noise EquivalentTemperature Difference): ≤ 50 mK (@25°C, F# = 1.0)
- Field of View: 37.2° × 50° (H × V)
Temperature Measurement
- Temperature Range: 1°C to 45°C (33.8°F to 113°F)
- Temperature Accuracy: ± 0.5°C (0.9°F)* / ±0.3°C (0.5°F)**
- Temperature Distance: Adjustable, 50 cm–100 cm (19.69” to 39.37”)
General
- Dimension (W x H x D)
• Camera: 77 mm x 46 mm x 22.2 mm (3.03″ x 1.81″ x 0.87″)

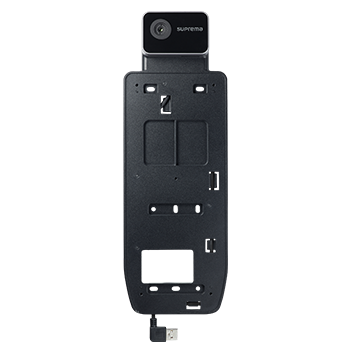

• Camera with bracket:
– TCM10-FSF2-ODB: 109.89 mm x 315.69 mm x 13 mm (4.33″ x 12.43″ x 0.51″)
– TCM10-FSF2-DB: 109.89 mm x 283.39 mm x 13 mm (4.33″ x 11.16″ x 0.51″) - Interface: USB
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 5% to 85%
* This document only provides the specifications of Suprema Thermal Camera. To check the specification of FaceStation F2, refer to the user manual.
* This accuracy rate is possible only when you use the device under the following conditions:
1) Warm up Suprema Thermal Camera for more than 90 minutes after turning it on for self-calibration.
2) Operate the device within the recommended ambient temperature range (10°C to 35°C or 50°F to 95°F).
** According to KOLAS (Korea Laboratory Accreditation Scheme) calibration certificate
-specifications(Model:TCM10-FS2)
Thermal Module
- Max. Resolution: 120 × 160
- NETD (Noise EquivalentTemperature Difference): ≤ 50 mK (@25°C, F# = 1.0)
- Field of View: 37.2° × 50° (H × V)
Temperature Measurement
- Temperature Range: 1°C to 45°C (33.8°F to 113°F)
- Temperature Accuracy: ± 0.5°C (0.9°F)* / ±0.3°C (0.5°F)**
- Temperature Distance: Adjustable, 40 cm–80 cm (15.7” to 31.5”)
General
- Dimension (W x H x D)
• Camera: 77 mm x 46 mm x 22.2 mm (3.03″ x 1.81″ x 0.87″)
• Camera with bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51″ x 6.45″ x 0.90″) - Interface: USB
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 5% to 85%
* This document only provides the specifications of Suprema Thermal Camera. To check the specification of FaceStation 2, refer to the user manual.
* This accuracy rate is possible only when you use the device under the following conditions:
1) Warm up Suprema Thermal Camera for more than 90 minutes after turning it on for self-calibration.
2) Operate the device within the recommended ambient temperature range (10°C to 35°C or 50°F to 95°F).
** According to KOLAS (Korea Laboratory Accreditation Scheme) calibration certificate
