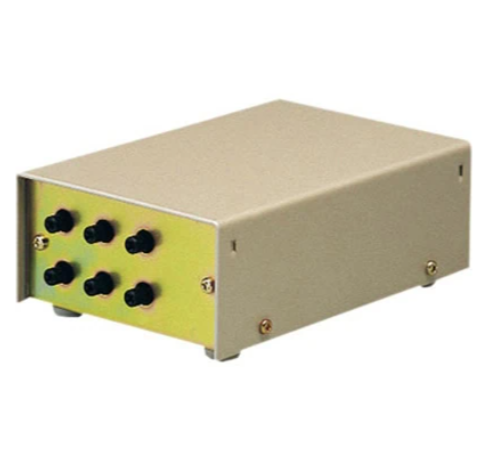

Aiphone PD-1


Aiphone PD-1

Paging Adaptor for TD-H/B Series


  • Provides paging from TD-H handsets to an overhead PA system
  • Single or multi-zones
  • Music source connection, automatically mutes when paging



5KΩ, 1.5V max.

Amp. Input

AUX or PHONO 100K~500KΩ, 0.12V~0.5V

Music Input

17KΩ, 0.3V, 1KHz for full output

Tuner Output

Audio output range: 100mV~1.2V, 10KΩ or less

Talkback Gain

40dB, 1KHz at max. volume

Environmental Noise

Less than 80dB (phono)

Wire Type

Adaptor to Amplifier: 2-cond., overall shield – use Aiphone #822202
Adaptor to Master Station: 3-cond.,overall shield – use Aiphone #822203
