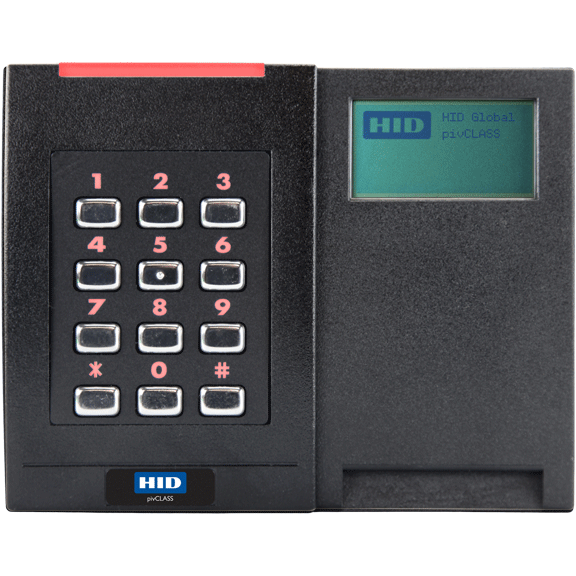

HID pivCLASS RKCL40
Dual interface pivCLASS reader with LCD
HID Global’s pivCLASS RKCL40 contact, plus contactless dual interface reader is suitable for use in security areas meeting the FIPS-201 criteria for both “Controlled” and “Limited” access. When used in conjunction with HID Global’s pivCLASS Authentication Module (PAM) or OSDP-compliant strong authentication controller infrastucture, the pivCLASS RKCL40 reader provides strong authentication ensuring that the card being presented is genuine; the data on the card has not been changed or manipulated; the card is not a copy or clone of another card; and the card has not been lost or stolen. When used in Card Authentication Key (CAK) mode, it supports reading any PIV-based card with a contactless interface and containing a CAK certificate. When used in PIV+PIN mode, the reader supports on-card-matching of a PIN, reading and validating the PIV Authentication Key certificate.
Key Features:
- The dual interfaces of this reader provide a backup for cases when a card’s contactless antenna is broken. The CAK certificate can also be read using the contact interface
- Configurable to operate in either Wiegand or strong authentication mode (PAM or third-party panel)
- Dynamically switchable authentication modes (using PAM)
- Supports reading legacy cards such as iCLASS, iCLASS SE and standard Prox
SPECIFICATIONS
Typical Maximum Read Range*
- Up to 2” for ISO14443 A cards
Dimensions:
- 4.8” X 6.1” x 1.2” (12.2 x 15.6 x 3.0 cm)
Legacy cards supported:
- Proximity: HID Prox, AWID and EM4102
13.56 MHz contactless smart cards supported:
- PKI-based FIPS 201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC
- iCLASS SE, iCLASS SR, standard iCLASS, SE for MIFARE Classic, SE for MIFARE DESFire EV1
Supported outputs in Wiegand mode:
- 40 bits
- 64 bits
- 75 bit GSA
- 128 bit UUIDs
- 200 bits full FASCN
Protocol:
- Wiegand mode – Wiegand
- Strong Authentication Mode – HID pivCLASS protocol (PAM) or OSDP (works with strong authentication panel infrastructure)
Warranty:
- Warrantied against defects in materials and workmanship for one year. (See complete warranty policy for details.)
