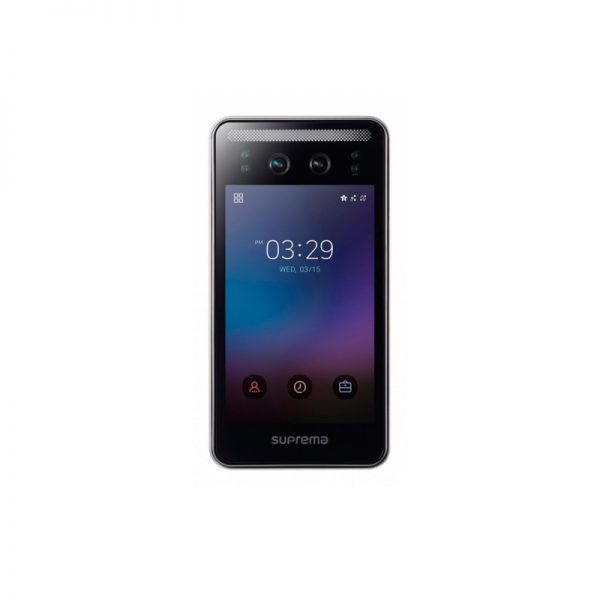

Suprema FaceStation F2 FSF2-AB Fusion Multimodal Terminal

描述

Suprema FaceStation F2 FSF2-AB Fusion Multimodal Terminal

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched facial authentication performance.
Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.

Specification



Credential

• Biometric：Face
• RF Option：125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3(1),
  FeliCa, iCLASS SE/SR/Seos
• RF Read Range：EM/MIFARE/DESFire : 50 mm (2″), FeliCa: 30 mm (1.2″)
• Mobile：NFC, BLE



General

• CPU：1.8 GHz Dual Core + 1.4 GHz Quad Core
• Memory：16GB Flash + 2GB RAM
• Crypto Chip：Supported
• LCD Type：7” IPS color LCD
• LCD Resolution：800 x 1280 pixels
• Sound：16 bit
• Operating Temperature：-20°C ~ 50°C (-4°F ~ 122°F)
• Operating Humidity：0% ~ 80%, non-condensing
• Dimension (W x H x D, mm)：119.8 x 233 x 23.5 (4.7″ x 9.1″ x 0.9″)
• Weight（Device）：585g
• Weight（Bracket）：181g
• Ingress Protection (IP)：IP65
• Certificates：CE, FCC, KC, RoHS, REACH, WEEE



Face

• Recognition Distance：0.5m ~ 1.3m (19.7″ ~ 51.2″)
• Recognition Height：140cm ~ 190cm (55.1″ ~ 74.8″)
• Matching Speed：Less than 0.5 sec
• Live Face Detection (Anti-Spoofing)：Supported



Capacity

• Max. User (1:1)：100,000
• Max. User (1:N)：Face: 50,000
• Max. Text Log：5,000,000
• Max. Image Log：50,000



Interface

• Ethernet：10/100 Mbps, auto MDI/MDI-X
• RS-485：1ch Host or Slave (Selectable)
• Wiegand：1ch Input or Output (Selectable)
• TTL Input：2ch Inputs
• Relay：1 Relay
• USB：USB 2.0 (Host)
• Tamper：Supported



Power

• DC 12V 1.9A, DC 24V 1A
  * Use a DC 24V 1A adapter. Must follow the product manual when using a DC 12V adapter.
