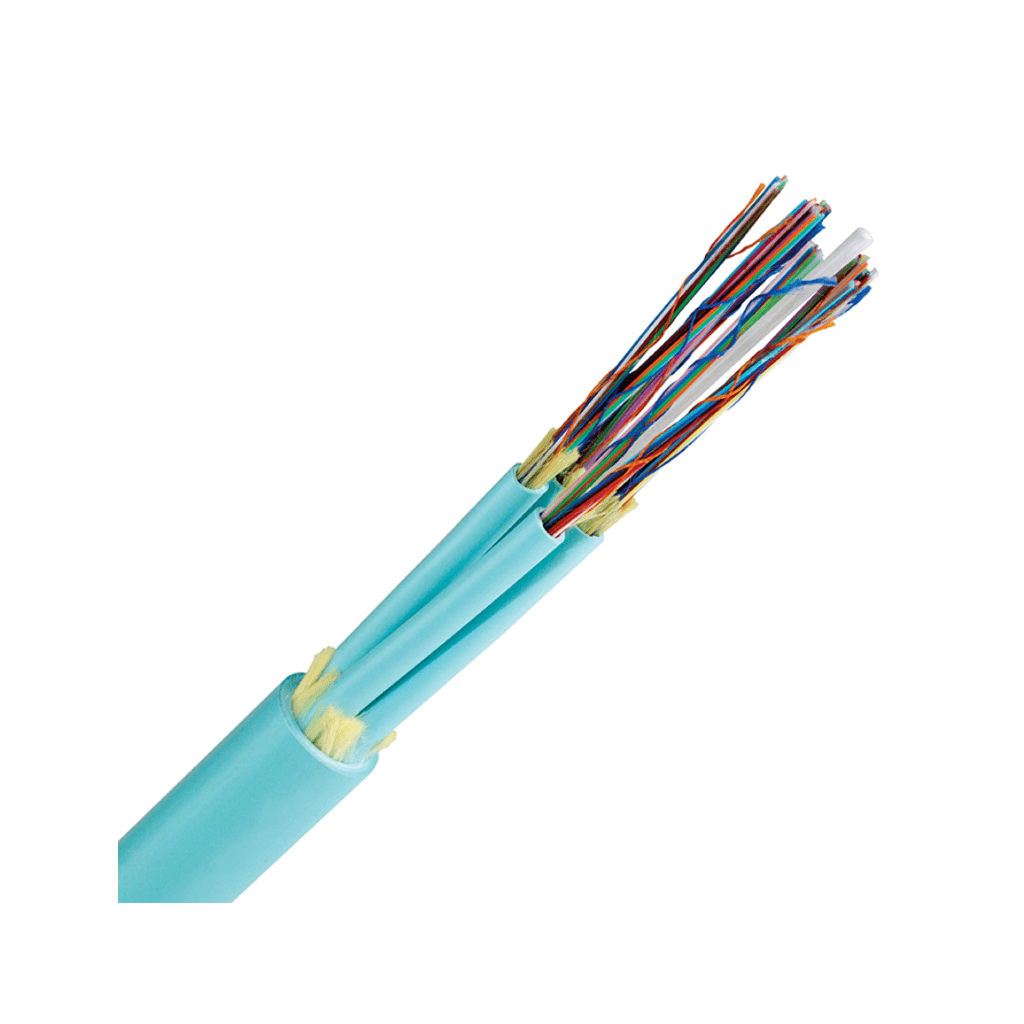

AFL Sub-unitized Premise MicroCore® 3.0 with SpiderWeb Ribbon® Technology

SpiderWeb Ribbon technology allows for a highly efficient ribbonizing application or for individual fiber break-outs
Each sub-unit can stand alone as a rated cable
12-fiber sub-units with 12-144 fiber counts
24-fiber sub-units with 24-288 fiber counts
High fiber density—more channels in less space
No preferential bend direction typically found in stacked ribbon design
Small diameter/superior bend performance
LSZH or Plenum flame-rated jacket
All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within core for use with MT termination

In-building cable runs where space is a premium
Trunk applications where flexibility and small bend radii are required to route cable
High density cable areas like data centers and central offices
Lower cost cable runs where easy handling of tight buffered fibers not needed because cable will be spliced to factory terminated pigtails
