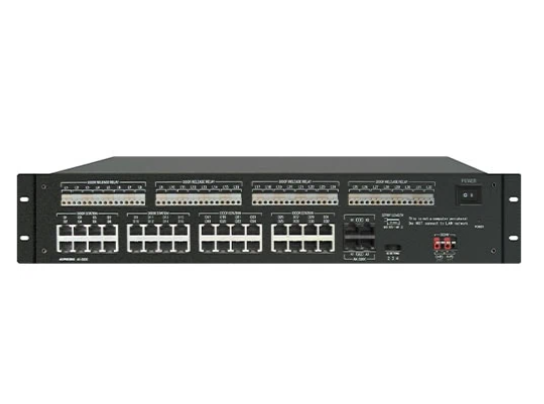

Aiphone AX-320C
Add-on exchange unit for 32 AX Series door or sub stations.
FEATURES
- Wiring hub for AX Series system using Cat-5e
- Two 24V DC power supply input terminals
- Rack mountable
SPECS
Door Release
Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating)
Mounting
19″ EIA rack (2U) or wall mount
Wire Type
Between Door/Sub Station and Add-On Exchange Unit: Cat-5e
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield – use Aiphone #821802
Distance
Door/Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980′
Central Exchange Unit to Add-On Central Exchange Unit: 16′
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16′(22AWG), 33′(18AWG)
