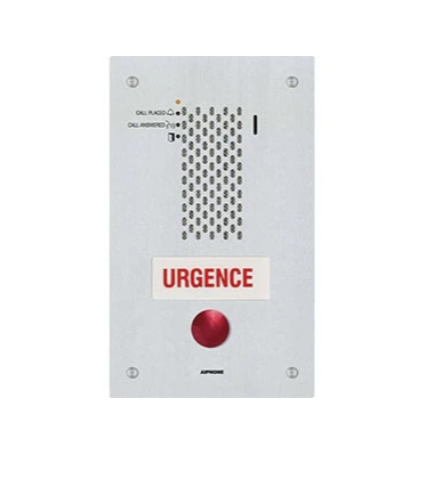

Aiphone IX-SSA-RA-FR
FEATURES
- SIP 2.0 compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- Emergency call button
- ADA compliant raised lettering and Braille signage (French)
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
SPECS
Power Source
PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
Power Draw
3.36 Watts @ 48V DC
Audio Codec
G.711 (μ-law, A law), G.722
Protocols
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security
IEEE 802.1X
Operating Temp
-40° – 140°F (-40° – 60°C)
Ingress Protection
IP65
Impact Protection
IK08
Dimensions
11-11⁄16″ H x 7″ W
Mounting
Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
