The IXGW-LC-RY20 is a relay adaptor for the IXG Series IP multi-tenant video intercom system. This adaptor provides a Form C dry contact closure used for door release when paired with an IXG-DM7-HID entrance station.
The IXGW-LC-RY20 is equipped with 20 Form C relays. Up to 16 adaptors, along with the IXGW-LC, can be included in a building. Each relay can be configured and assigned to a specific IXG-DM7-HID entrance station. Individual relay contacts will activate when the door release for that entrance is activated. The elevator recall button on the IXG-2C7 tenant station can be used to activate a contact to recall the elevator to that specific floor

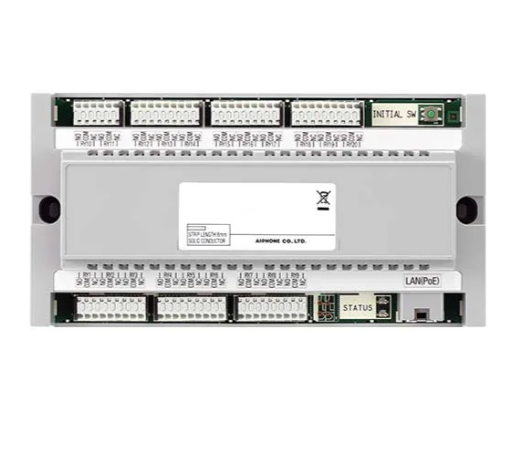

Aiphone IXGW‑LC-RY20
Power Source:PoE
Consumption:2.1W standby, 4.4W max.
LAN:Ethernet (10BASE-T, 100BASE-TX)
Packet Delivery:Unicast, Multicast
Protocol:IPv4/v6, TCP, UDP, HTTP, HTTPS, IGMP, MLD, FTP, DHCP NTP, , DNS, TLS
Encryption:TLS 1.0, 1.1, 1.2
Operating Temp:14° ~ 122°F (-10° ~ 50°C)
Dimensions:4-¼” H x 8-¼” W x 2-⅜” D
