Hand Wave Call Sensor and Surface Mount Box

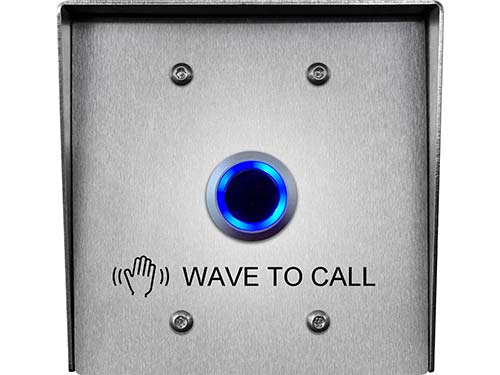

The IXW-HWCBP hand wave call sensor is weather resistant and includes the SBX-2G/A surface mount box. It also includes the PS-POE to power the sensor, which can be mounted inside the SBX-2G/A.



  • Weather resistant
  • Includes the SBX 2G/A surface mount box and PS POE splitter to power the sensor
  • Powered from either a PoE network drop or from the LAN 2 output on an IX Series door station (requires PoE+ switch)
  • Form C dry contact output can be connected to the trigger input of an IX Series door station
  • Allows visitors to place a call without touching the call button on the door station
  • Sensor is illuminated in blue while in standby and turns green when activated


Power Source: PoE (IEEE 802.3af class 0)

Power Draw: 30mA standby, 50mA active

Sensor Type: Infrared LED with LED ring

Detection range: 0-10cm

Contact rating: 30VAC/DC, 3A

Material of panel: 18-Gauge stainless steel

Operating Temp: -4° ~ 131°F (-20° ~ 55°C)

Dimensions: 4-13⁄16” H x 4-⁷⁄8” W x 4” D

Aiphone IX-Series IXW-HWCBP Specification
