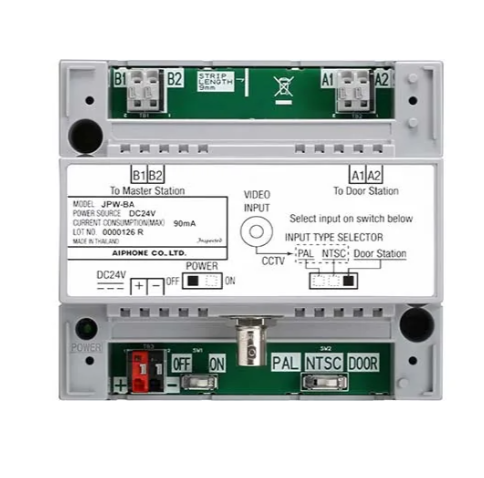

Aiphone JPW-BA
FEATURES
- Extends wiring distance from door stations to master stations up to 980′ max
- Requires low capacitance Aiphone wire #851602 or #851602DBW
- CCTV Adaptor that allows for an analog CCTV camera to be connected in conjunction with the GT-D audio door station
SPECS
Capacity
One adaptor unit for each video door station located beyond the standard specified wire distance
Mounting
Din rail (sold separately)
Wire Type
2-cond., low cap, PE, solid, non-shielded – use Aiphone #851602 or #851602DBW (direct burial)
BNC / Coax for CCTV camera
Wire Distance
Adaptor to Door Station: 650′
Adaptor to Master Station: 330′
Temperature Rating
32-104°F (0-40°C)
Dimensions
4-5/16″ H x 4-7/8″ W x 2-7/16″ D
