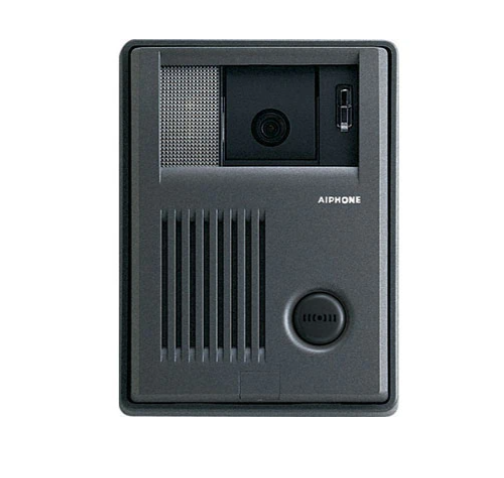

Aiphone KB-DAR-M
KB-DAR with Remote Activation Contacts
The KB-DAR-M allows any standard motion detector or activation device with a normally open contact to be interfaced with the KB-3MRD Video System. When the motion detector is tripped, the camera will turn on and a chime will be heard at the inside monitor station(s), indicating that there is some activity near the door station location.
- Tilt controlled camera
- Mounts directly to wall or 1-gang box
- Locator LED backlit on CALL button
- LED illumination automatically turns on in low light conditions
- Motion detector interface
Communication
Hands-free
Camera
Type: 1/4″ CCD
View Area: 3’8″~7’1″ vertical x 2′ horizontal at 20″
Temp. Rating
14°~140°F (-10°~60°C)
Material
Fire resistant ABS plastic
Mounting
Surface mount directly to wall
Wire Type
Door Station to Master Station: 2-cond., low cap, non-shielded – use Aiphone #871802
Distance
Door Station to Master Station: 330′(22AWG) 650′(18AWG)
