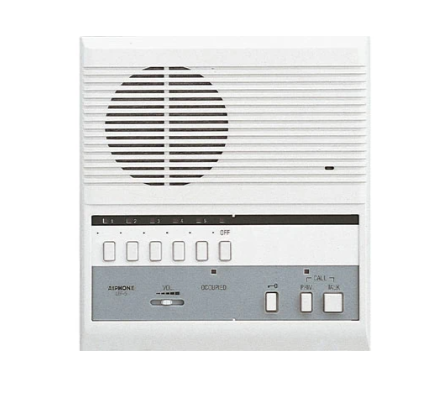

Aiphone LEF-5

Analog 5-Channel Master Station

The LEF-5 is a selective calling open voice style master station with a capacity of up to 6 total stations.

描述

Aiphone LEF-5

Analog 5-Channel Master Station

The LEF-5 is a selective calling open voice style master station with a capacity of up to 6 total stations.

FEATURES
  • Supports up to 6 total master, sub, or door stations
  • LED and tone to announce incoming calls
  • Push-to-talk at calling master station
  • Hands-free communication at responding station
  • Large variety of sub and door stations
  • Selective monitoring
  • Privacy feature prevents unauthorized monitoring
  • Voice and call tone volume controls
  • Selective door release




SPECS

Power Source

12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.

Output

800mW @ 20Ω (reception)
500mW @ 20Ω (transmission)

Communication

Press-to-talk, release-to-listen at master station. Hands-free at responding station.

Talk Channel

1 talkpath. Occupied LED when in use.

Wiring

5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.

Capacity

Up to 6 stations, intermixable

Wiring Distance

650′ w/22AWG; 1600′ w/18AWG

Operation Temp

32°~104°F (0°~40°C)

Dimensions

8-1/18″ H x 7-1.2″ W x 2-3/16″ D
