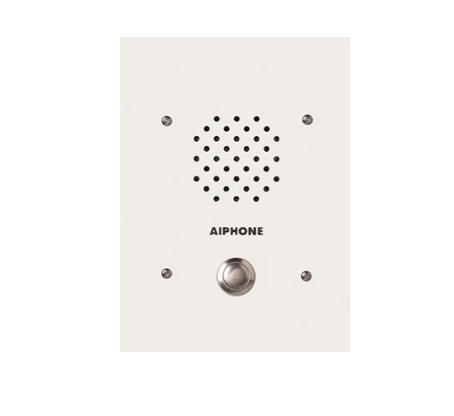

Aiphone LS-NVP/C
3-Gang Sub Station, Vandal Resistant Powder Coated Steel
FEATURES
- Provides communication and call-in
- Powder-coated steel panel
- Weather and Vandal Resistant
- Hands-free communication when master answers
SPECS
Type of communication
Open voice hands-free communication
Mounting
Mounts flush in wall with 3-gang box/ring or directly on wall with SBX-NVP/A
Wire Type
3 cond., overall shield – use Aiphone #822203(22AWG) or #821803(18AWG)
Wire Distance
Door Station to farthest Master Station: 650′(22AWG) 1,600(18AWG)
Temperature Rating
14° ~ 140°F (-10°~60°C)
Dimensions
7-1/2″ H x 5-1/2″ W x 2″ D
