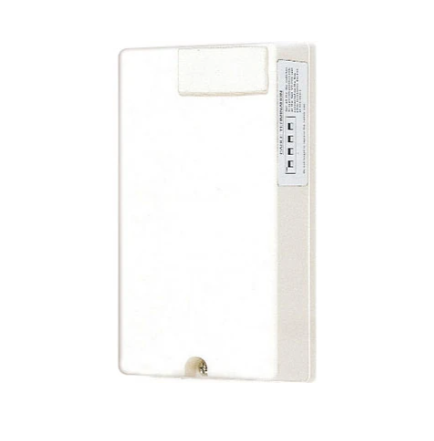

Aiphone RY-3DL
FEATURES
- Provides selective door release capability
- Compatible with JP, JF, and KB
- Both normally open and normally closed output options
SPECS
Relay Input
12-18V DC, Red, Gray wires, 22AWG
N/O Output rating
1A at 30V DC or 50V AC
N/C Output rating
1A at 30V DC or 50V AC
Wiring
4 conductors from Master Station to RY-3DL.
2 conductors from power supply to RY-3DL.
2 conductors from RY-3DL to release mechanism, with power wired in series.
Dimensions
5-1/2″ H x 3″ W x 1-1/2″ D
