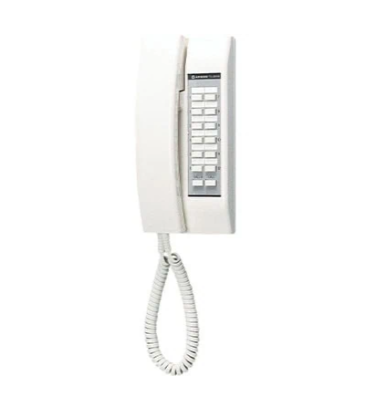

Aiphone TD-24H/B
24-Call Handset
FEATURES
- 24 talk paths for communication and paging
- Handset cradle for wall mounting can be reversed for desk use
- Station-select break-in call
SPECS
Power Consumption
70mA per station
Type of communication
Handset (full-duplex)
Door Release Contact

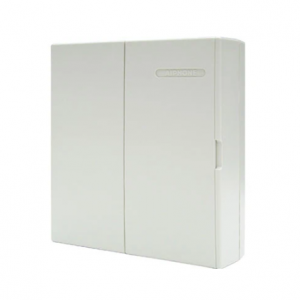

N/O dry contact, 30V AC/DC, 1A (at DE-UR)
Mounting
Desk mount or surface mount directly to wall or 1-gang box
Wire Type
16-cond., overall shield – use Aiphone #812216 (two runs of 812216 are required for full functionality of the TD-24H/B)
Wire Distance
Between TD Master Stations: 2,200′(22AWG) 4,800′(18AWG)
