描述
APDU11350MO

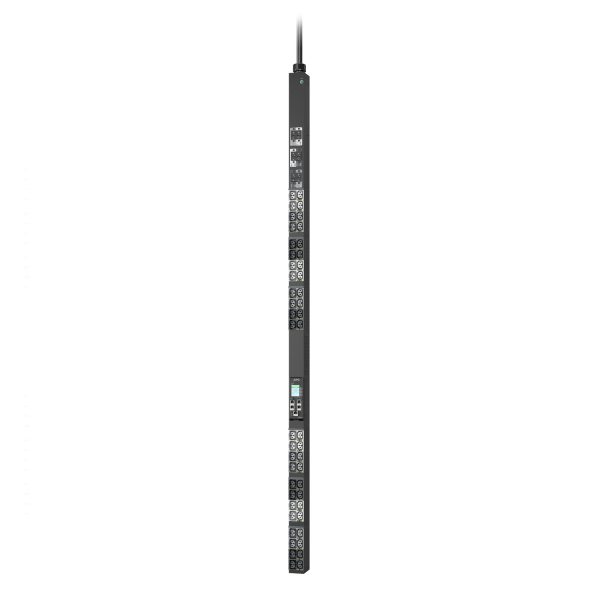

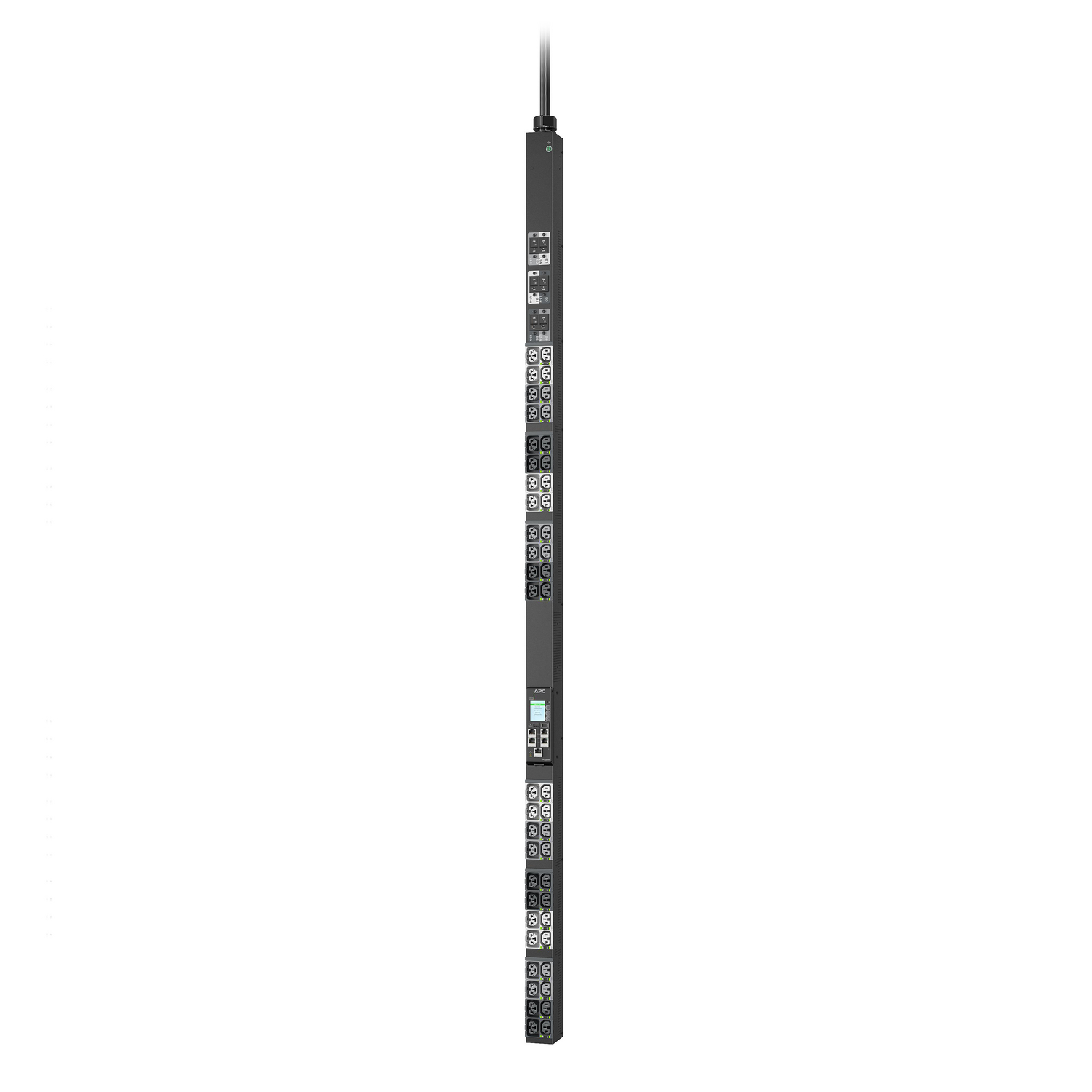

NetShelter Rack PDU Advanced Gen 2, Metered Outlet, 3Phase
APDU11350MO 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Product or component type | PDU |
|---|---|
| Main Input Voltage | 415 V 3 phases; 400 V 3 phases |
| Input current limits | 30 A |
| Network frequency | 50/60 Hz |
| Main Output Voltage | 240 V |
| Input Connection Type | IEC 60309 30 A 3P + N + PE |
| Number of power socket outlets | 24 C13/C15/C19/C21 ; 24C13/C15 |
| Load capacity | 17300 VA |
| [In] rated current | 24 A |
| permissible voltage | 200…240 V; 346…415 V |
| Max current draw | 24 A |
| PDU type | Metered outlet |
| Protection type | Circuit breaker |
| Number of rack unit | 0U |
| Cable length | 3 m |
補充規格
| Mounting location | Side |
|---|---|
| Mounting mode | Rack-mounted |
| Mounting position | Vertical |
| Communication port protocol | 1000BASE-T; 10/100BASE-T |
| Colour | Black |
| Height | 1780 mm |
| Width | 56 mm |
| Depth | 75 mm |
| Net weight | 9.6 kg |
