描述
AR3347

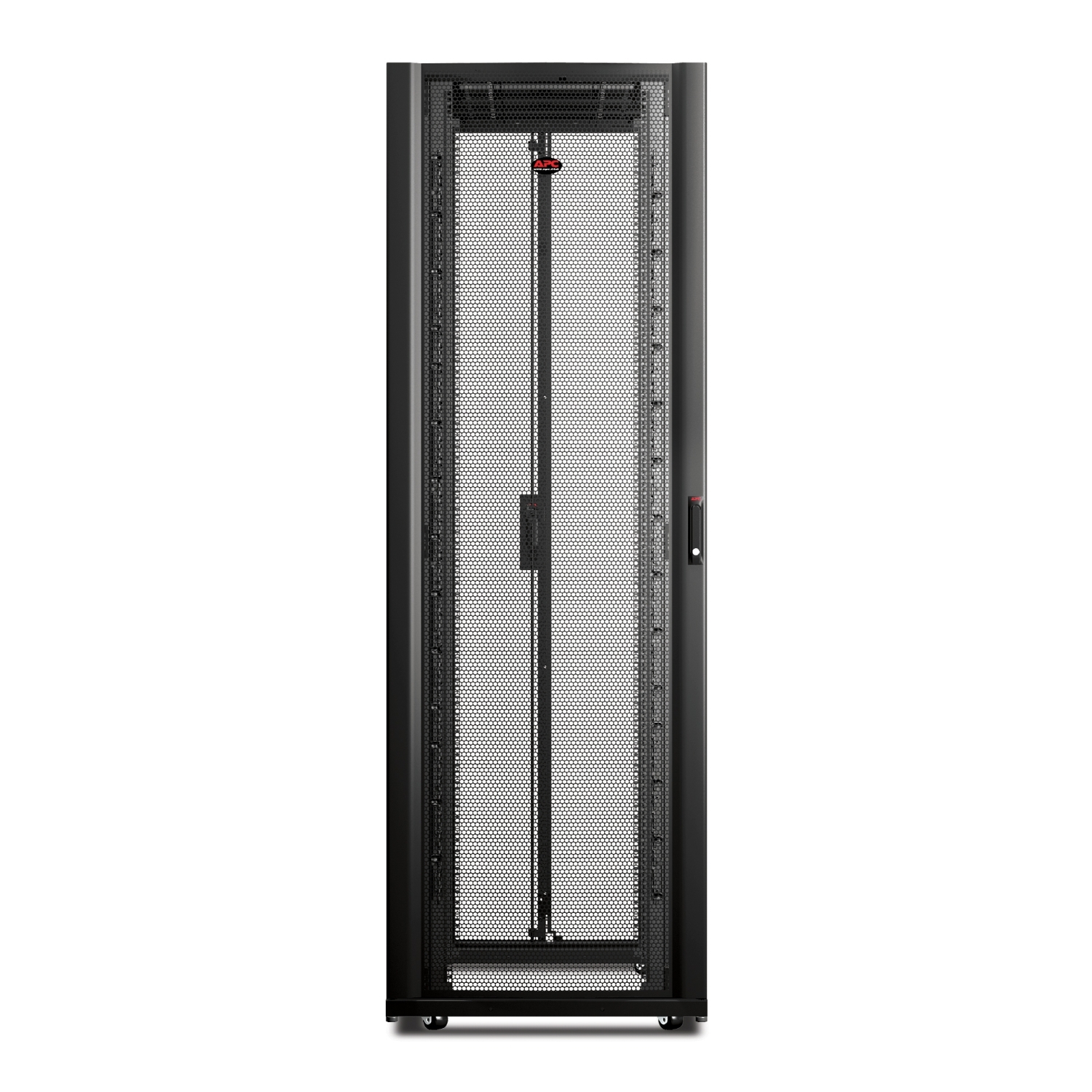

NetShelter SX, Networking Rack Enclosure, 48U, Black
AR3347 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
APC NetShelter SX Networking Rack Enclosure is industry standard server rack ready for medium to high density environments. Rack design offers 48RU height with 959 mm max equipment mounting depth, 1701 kg (3750 lb) static load, and 1021 kg (2250 kg) dynamic load. Network rack design helps enable faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 48U |
| Rack width | 19" |
| Permanent permissible load | 1020.6 kg dynamic; 1701.0 kg static |
| Provided equipment | Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels; Vertical cable managers |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 279.4 mm |
| Maximum mounting depth | 958.9 mm |
| Colour | Black |
| Marking | 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels |
| Height | 2258 mm |
| Width | 750 mm |
| Depth | 1200 mm |
| Net weight | 185.45 kg |
