描述

BE550G-UK

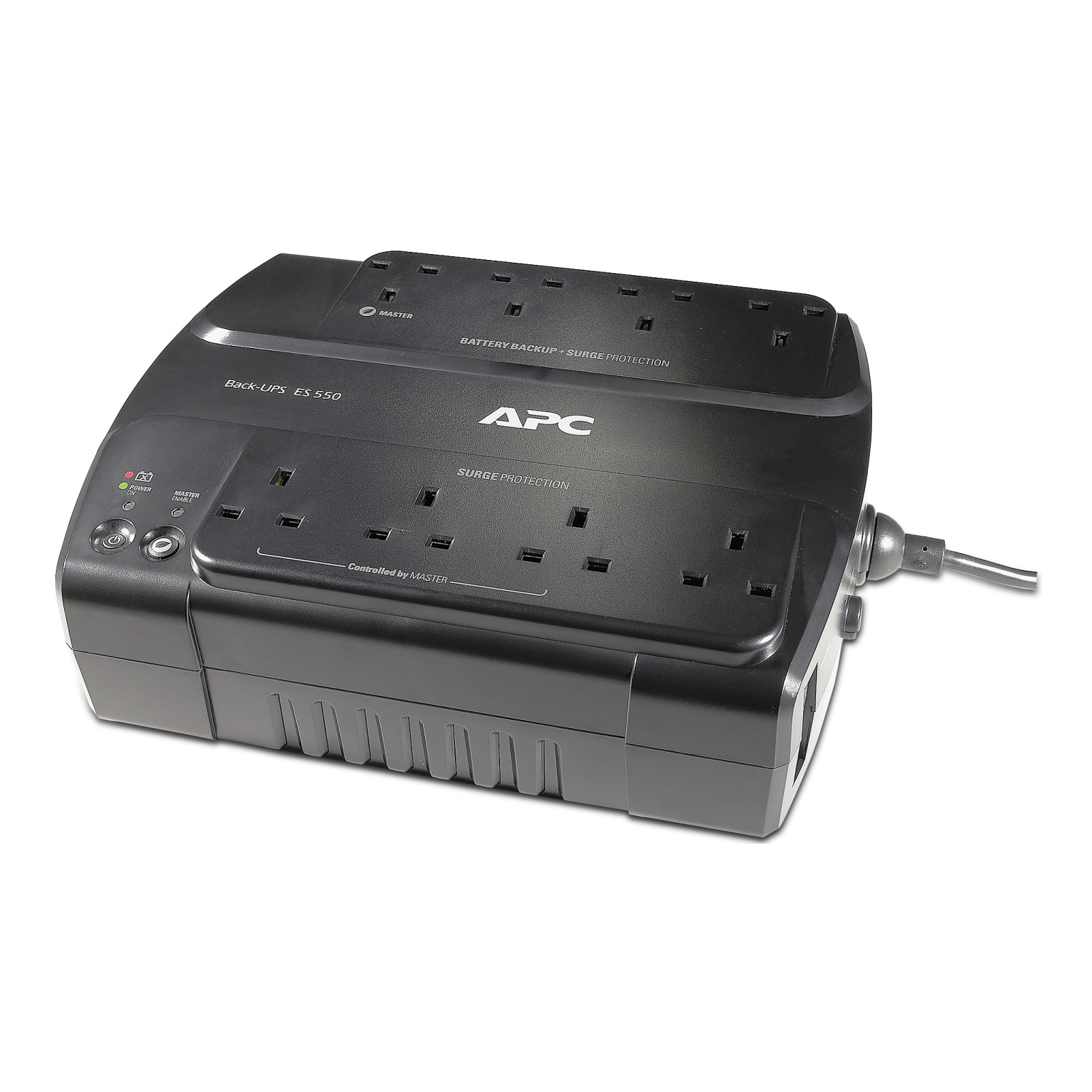

Power-Saving Back-UPS ES 550VA, 230V, BS1363

BE550G-UK 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Input connection	BS1363A British
Maximum input current	10 A
Switching current capacity	10 A
Efficiency at full load	180…266 V
Input frequency	50/60 Hz
Output voltage	230 V
Rated power in W	330 W
Rated power in VA	550 VA
Output connection	4 BS 1363; 4 BS 1363 surge
Maximum configurable power in VA	550 VA
Maximum configurable power in W	330 W
Output voltage tolerance	+/- 5% static and 100% load step
Transfer time	6 ms typical : 10 ms maximum
UPS topology	Standby
Waveform type	Stepped approximation to a sinewave
Output frequency	47…63 Hz sync to mains; 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Replacement battery	APCRBC110

Battery capacity	7.0 Ah
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Surge energy rating	310 J
Cable length	1.8 m
Color	Black
Height	89 mm
Width	224 mm
Depth	311 mm
Product weight	6.02 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	Yes
Provided equipment	CD with software; Telephone cable; User manual
Max runtime	6 min
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Product certification	CE
Marking	GS Mark
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…9144 m
Relative humidity	0…95 %
Storage relative humidity	0…95 %
Operating altitude	0…30000 ft
