描述

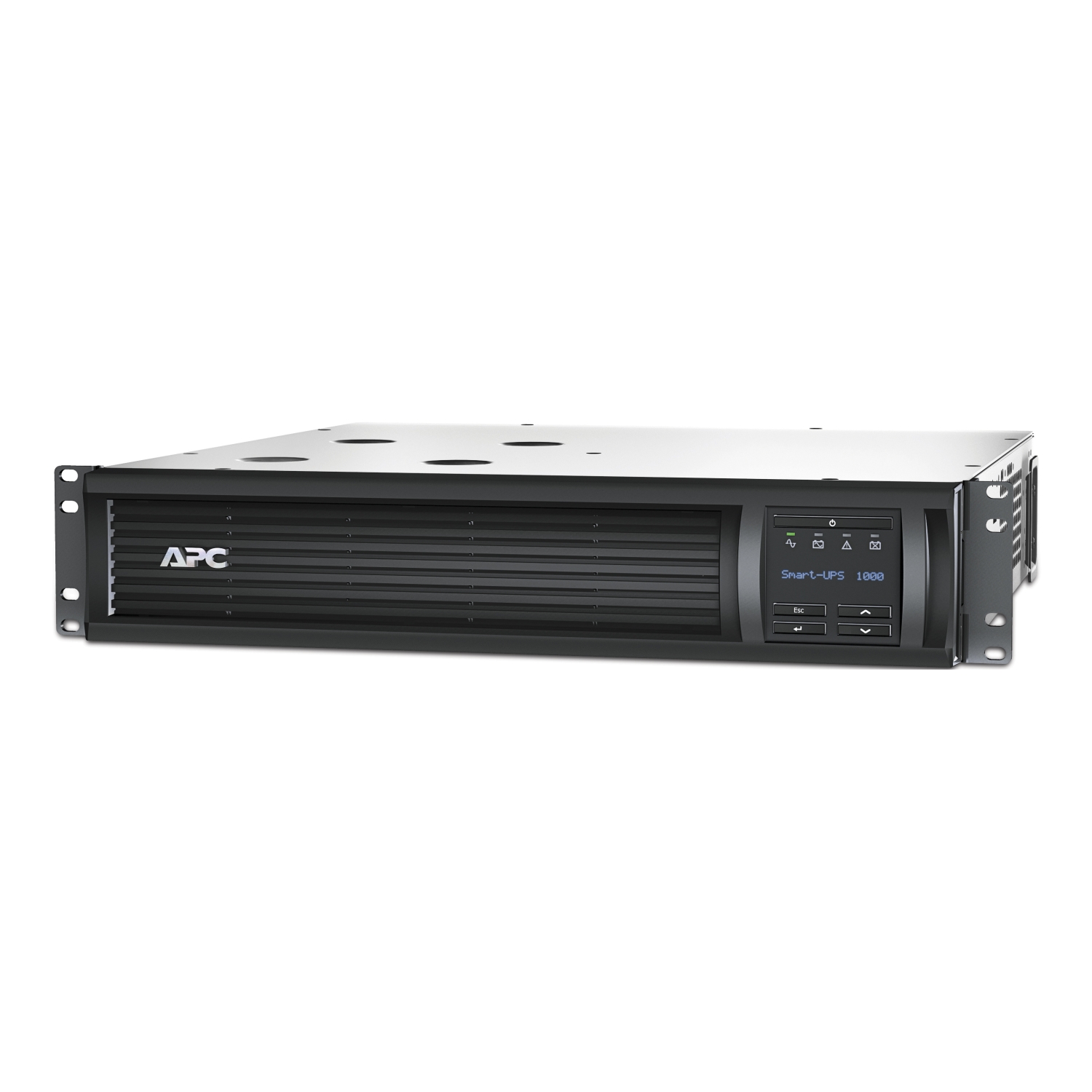

SMT1000RMI2U
Smart-UPS, Line Interactive, 1000VA, Rackmount 2U
SMT1000RMI2U 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 151…302 V adjustable; 160…286 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |
| Output connection | 4 IEC 60320 C13; 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Transfer time | 2 ms typical |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | APCRBC132 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 459 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Color | Black |
| Height | 85 mm |
| Width | 480 mm |
| Depth | 475 mm |
| Product weight | 28.18 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | USB cable; Documentation CD; Installation guide; Rack mounting support rails; Smart UPS signalling RS-232 cable |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CSA; EAC; RCM; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 56 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 4…6 year(s) |
| Battery charging power | 112 W rated |
