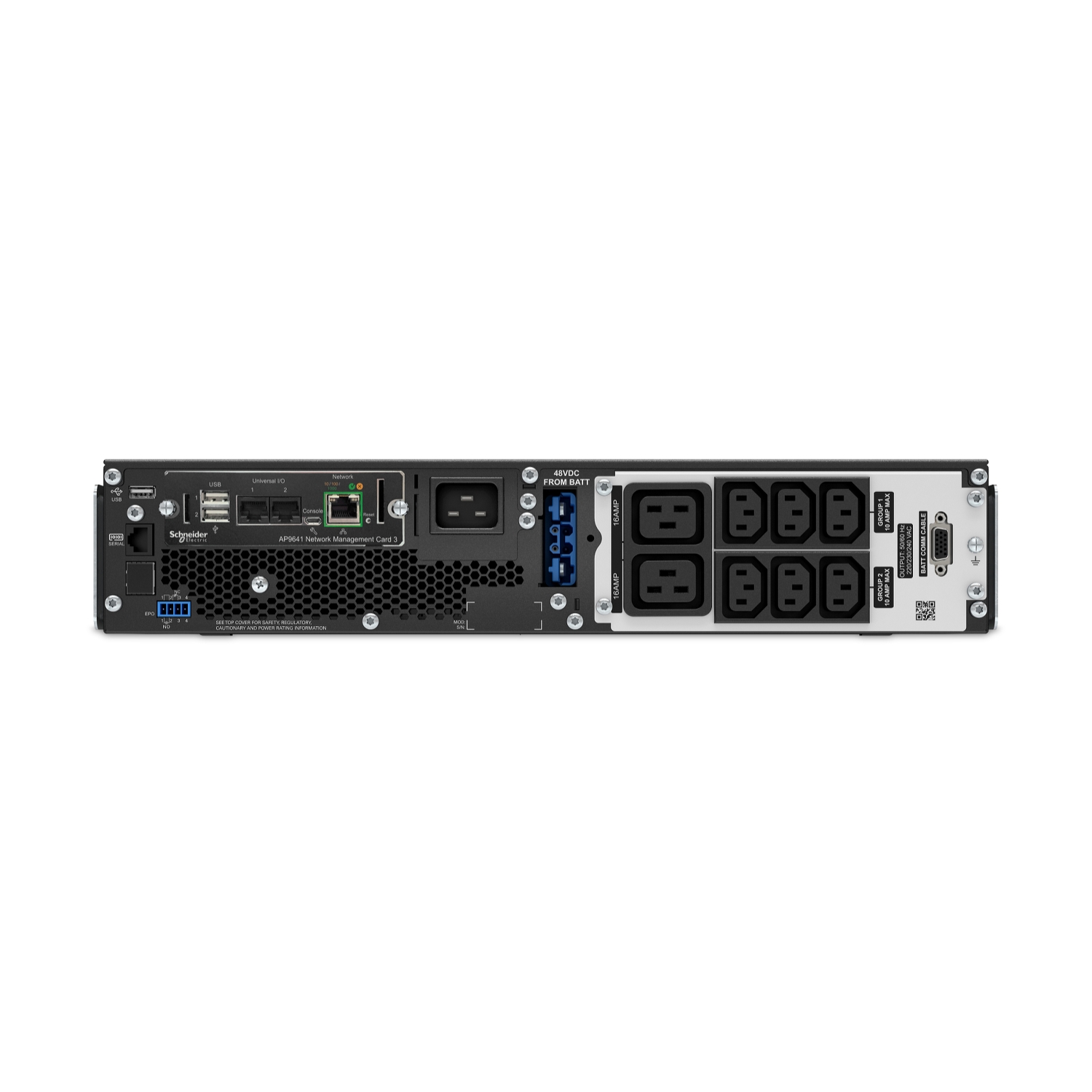

SRT2200UXI-NCLI
Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V
SRT2200UXI-NCLI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | BS 1363 British; IEC 60320 C20; CEE 7/7 |
| Efficiency at full load | 50…150 V 40% load; 80…150 V |
| Input frequency | 40…70 Hz auto-sensing |
| Output voltage | 230 V 1 phase |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Output connection | 6 IEC 60320; 2 IEC 60320 |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
補充規格
| Battery type | Li-Ion (Lithium-Ion) external sold separately |
|---|---|
| Emergency power off | Yes |
| Free slot | 0 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port; USB port; Pre-installed network management card 3 |
| Surge energy rating | 432 J |
| Number of rack unit | 2U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Color | Black |
| Height | 432 mm |
| Width | 85 mm |
| Depth | 508 mm |
| Product weight | 22 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Vertical |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software; Communication cable; Documentation CD; Installation guide; Removable support feet; USB cable; Warranty card |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; EAC; UK PSTI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
