SUM1500RMXLI2U

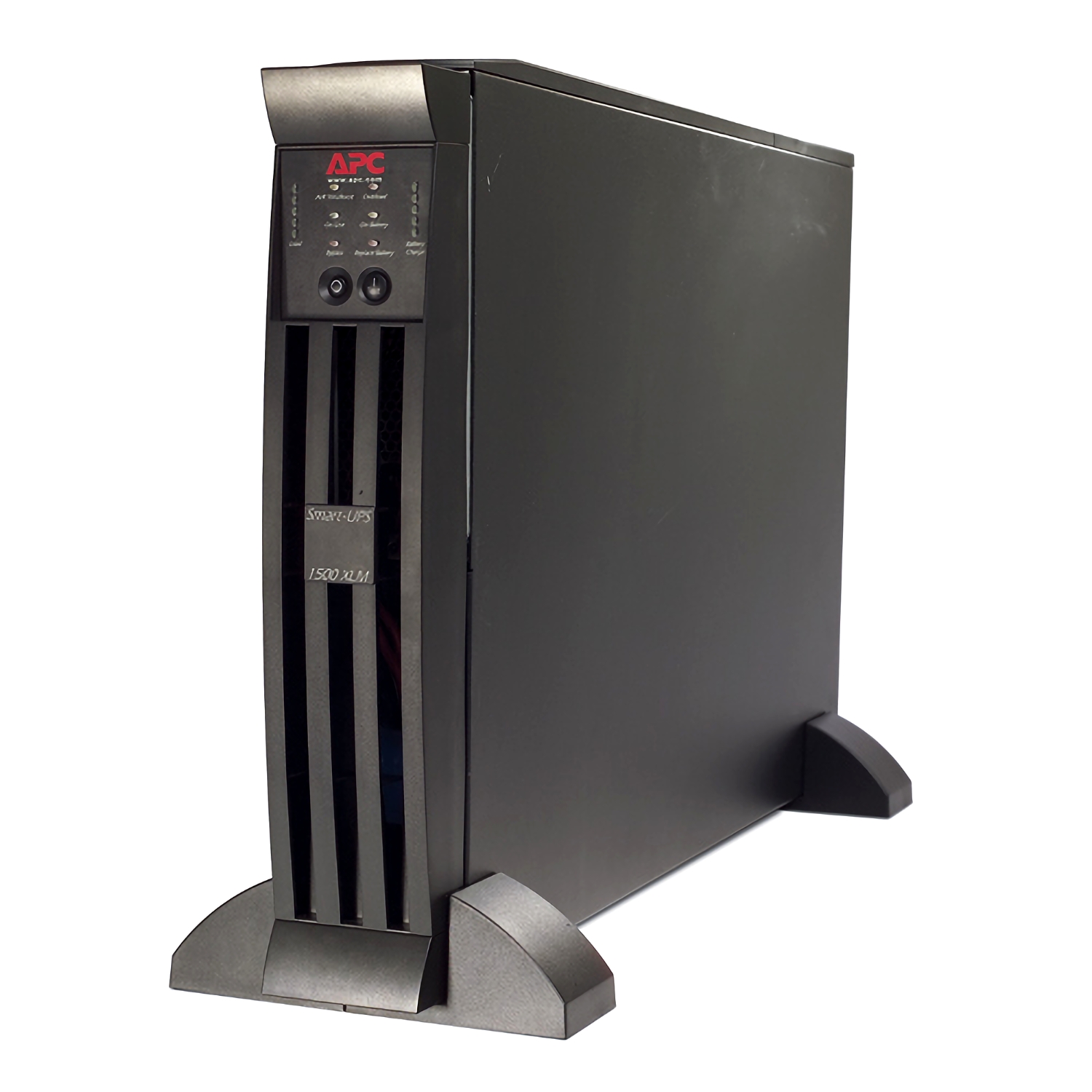

Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
SUM1500RMXLI2U 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Efficiency at full load | 151…302 V adjustable; 160…286 V |
| Input frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 1425 W |
| Rated power in VA | 1500 VA |
| Output connection | 9 IEC 60320 C13; 2 IEC Jumpers |
| Bypass type | Internal bypass (automatic and manual) |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1425 W |
| Maximum output current | 15 A |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Efficiency | 95 % (full load) |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains; 57…63 Hz for 60 Hz nominal sync to mains |
| Replacement battery | RBC43 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators |
| Emergency power off | Optional |
| Free slot | 0 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port; USB port; Pre-installed network management card 3 |
| Surge energy rating | 490 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Color | Black |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 678 mm |
| Product weight | 46.82 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software; Installation guide; Rack mounting brackets; Rack mounting support rails; Smart UPS signalling RS-232 cable; User manual; USB cable; Web/SNMP management card |
| Number of power modules | 1 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Network card pre-installed |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; UK PSTI |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…45 °C |
| Storage altitude | 0…9144 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 55 dBA |
| Heat dissipation | 300 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 1 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 199 W rated |
