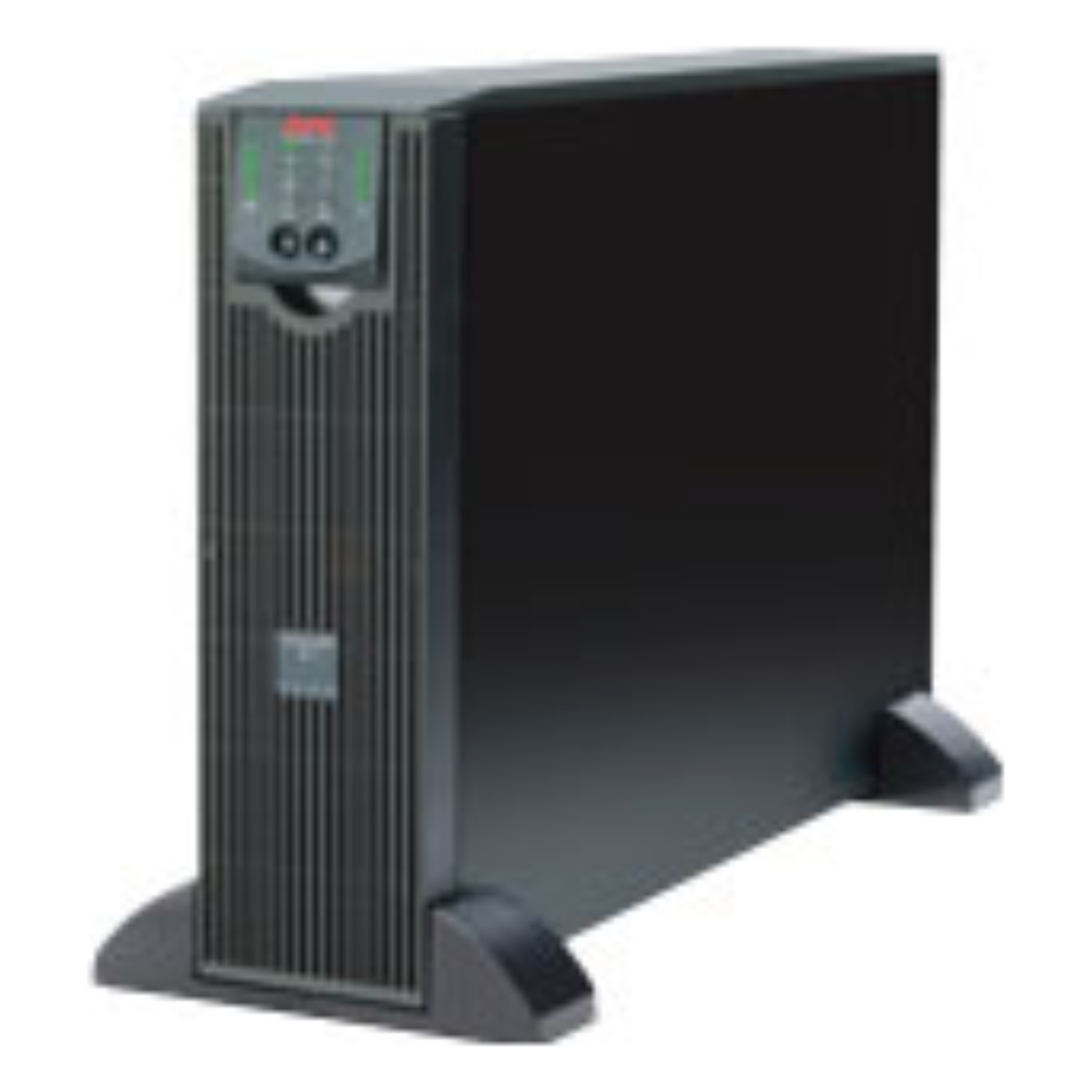

APC SURT5000XLICH Smart-UPS RT 5000VA, 230V, rackmount w/kit, 3U

查詢價錢

Smart-UPS RT 5000VA, 230V, rackmount w/kit, 3U。規格以原廠資料為準。

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

貨號: SURT5000XLICH 分類: APC, APC Smart-UPS

描述

SURT5000XLICH

Smart-UPS RT 5000VA, 230V, rackmount w/kit, 3U

SURT5000XLICH 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V AC 1 phase
Other input voltage	220 V; 240 V
Efficiency at full load	160…280 V
Input connection	1 hard wire 3-wire
Input frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	230 V AC 1 phase
Other output voltage	220 V; 240 V
Rated power in W	3500 W
Rated power in VA	5000 VA
Output connection	8 IEC 60320; 4 IEC Jumpers; 2 IEC 60320
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	Less than 3 %
Maximum configurable power in VA	5000 VA
Maximum configurable power in W	3500 W
UPS topology	On-Line
Waveform type	Sine wave
Efficiency	92 % (full load)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Replacement battery	APCRBC140

Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid internal included
Emergency power off	Yes
Free slot	0
Preinstalled device	Network management card 2 with environmental monitoring – Schneider
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	Serial port; USB port
Surge energy rating	480 J
Noise filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	3U
Color	Black
Height	432 mm
Width	130 mm
Depth	698.5 mm
Product weight	54.55 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted with kit
Two post mountable	0
USB compatible	No
Mounting mode	Rack-mounted with included kit
Provided equipment	CD with software; Smart UPS signalling RS-232 cable; User manual; Web/SNMP management card
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Smart-UPS On-Line
Product or component type	Uninterruptible power supply (UPS)

Product certification	C-Tick; CE; GOST; VDE
Standard	EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
IP protection	IP20
Relative humidity	0…95 % non-condensing
Storage relative humidity	0…95 % non-condensing
Acoustic level	55 dBA
Heat dissipation	1057 Btu/h
Operating altitude	0…10000 ft
