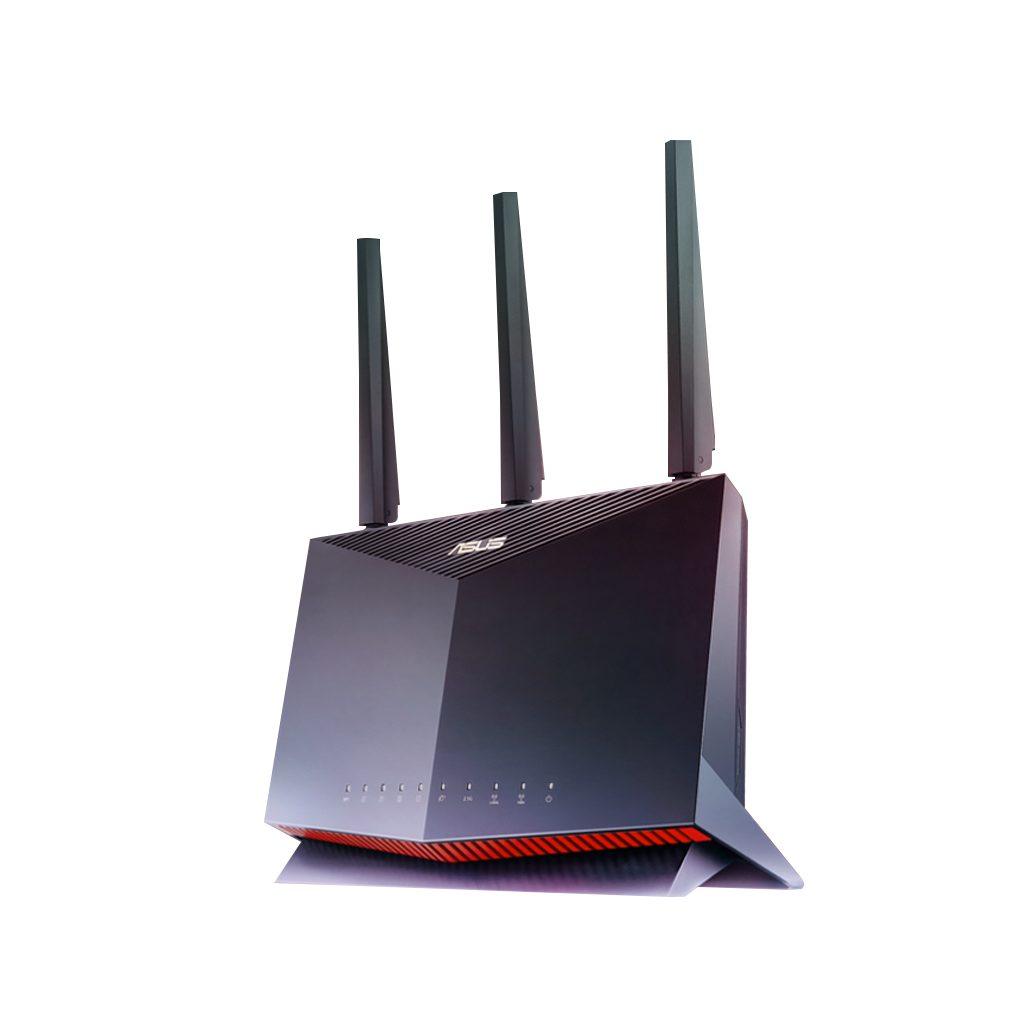

ASUS RT-AX86 Series(RT-AX86U/RT-AX86S)
RT-AX86U Dual-Band WiFi 6 (802.11ax) Gaming Wireless Router
Features
- Next-generation WiFi 6
- Mobile game mode
- 2 Gbps wired and wireless speeds
- Support AiMesh
- Commercial-grade home network security
Specifications
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX5700 ultimate AX performance : 861+4804 Mbps |
| WiFi Data Rate | 802.11a: Maximum 54 Mbps 802.11b: Maximum 11 Mbps 802.11g: Maximum 54 Mbps 802.11n: Maximum 450 Mbps 802.11n (1024QAM): Maximum 750 Mbps 802.11ac (1024QAM): Maximum 4333 Mbps 802.11ax (2.4GHz): Maximum 861 Mbps 802.11ax (5GHz): Maximum 4804 Mbps |
| Antenna | External antenna x 3 Internal PCB antenna x 1 |
| Transmit / Receive | 2.4GHz 3×3 5GHz 4×4 |
| Processor | RT-AX86U:1.8GHz quad-core processor RT-AX86S:1.8GHz dual- core processor |
| Memory | RT-AX86U: 256 MB Flash 1 GB RAM RT-AX86S: 256MB Flash 512MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Operating Mode | Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode |
| Power Supply | RT-AX86U : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current RT-AX86S : 12 V with max.3 A current / 19.5 V with max. 2.31 A current |
| Product Weight (g) | 814.5 g |
| Product Dimensions | 242 x 100 x 325 (with antenna) 242 x 100 x 164 (without antenna) |
