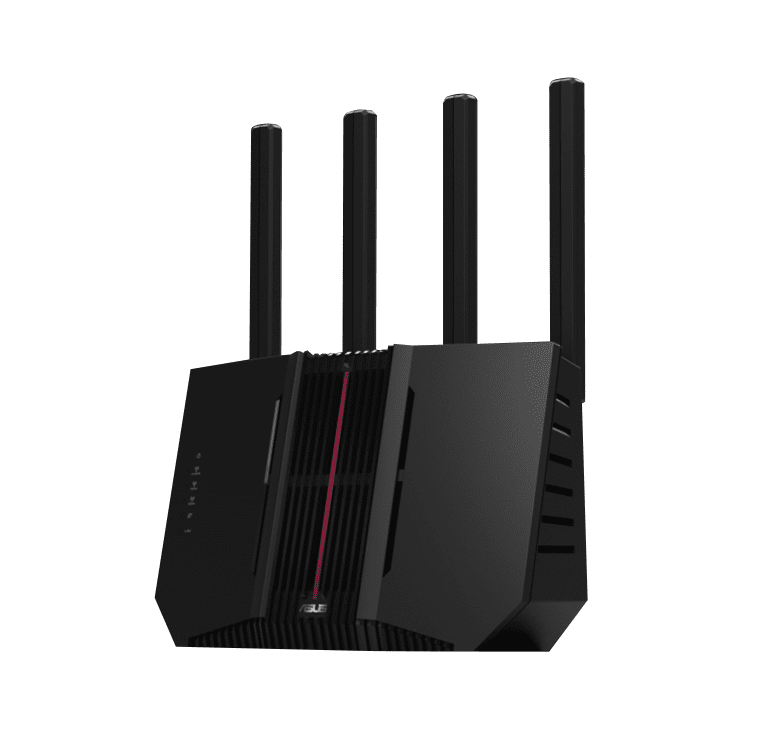

ASUS RT-BE92U
BE9700 Tri-band WiFi 7 Router
Features
- Ultra-fast WiFi 7 (802.11be) – featuring a new 6 GHz band with 320MHz channels and 4096-QAM technology.
- Multiple connectivity modes – can connect to multiple frequency bands simultaneously
- Multifunctional WAN configuration options
- Smart Home Master
- Internet security without subscription
- Comprehensive VPN functionality
- AiMesh: Easy-to-use network expansion tool
Specifications
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE9700 ultimate BE performance : 1032+2882+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (6GHz): up to 5764 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 2.4GHz 3×3 5GHz 2×2 6GHz 2×2 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB DDR4 RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz 6 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode Access Point Mode Media Bridge Mode Repeater Mode |
| Power Supply | AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 3 A current |
| Product Dimensions | 247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch |
