描述
CV-801K

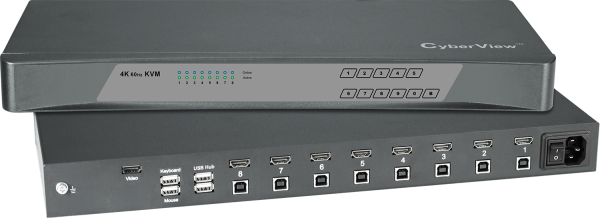

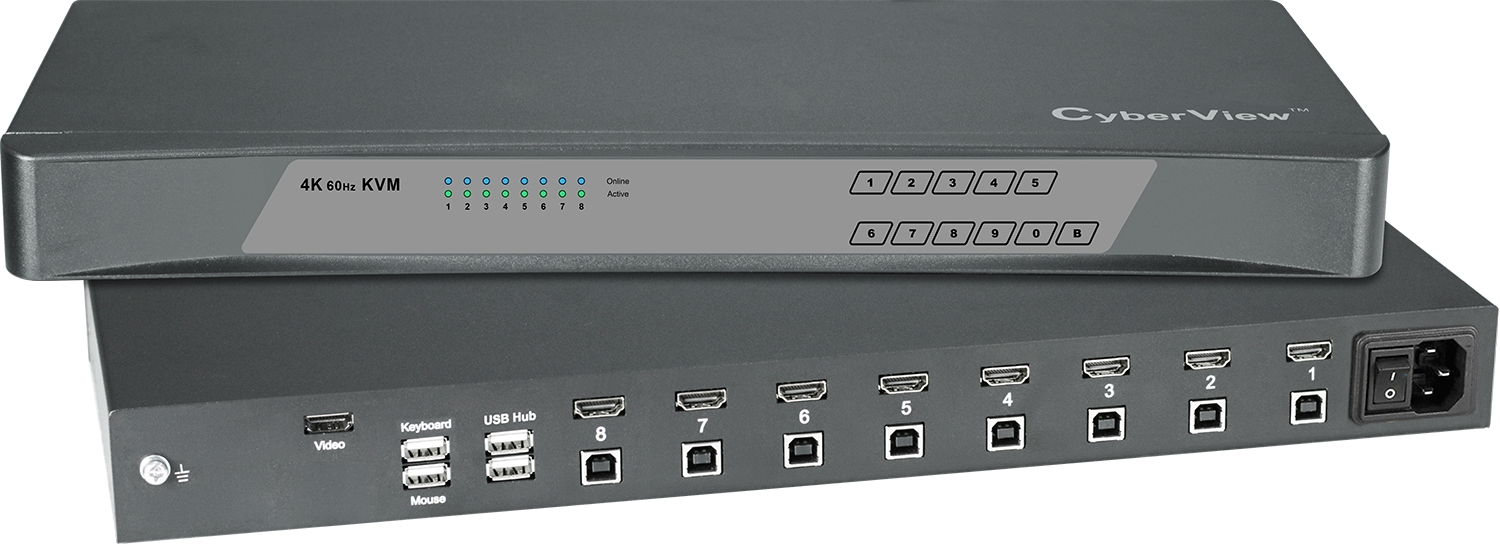

CyberView 8-Port HDMI KVM Switch
CV-801K 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The CyberView CV-801K is a single-user, 8-port, HDMI KVM with support for DisplayPort, HDMI or DVI-D enabled servers. Support up to 3840×2160 (60Hz) resolution.
The Austin Hughes Cyberview CV-801K is a single-user, 8-port, 4K KVM with support for HDMI & DisplayPort enabled servers. The CV-801K features a slim, rack mountable 1U chassis (mounting set w/ bracket & screws included) and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup. Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 10, OSX and Linux. With the native KVM cables, the CV-801K makes an attractive solution to control your ultra high-def HDMI & DisplayPort sources at up to 3840×2160 (60Hz) resolution. The integrated 2-Port USB Peripheral hub lets you share USB peripherals among multiple computers connected to the KVM.
規格
| Product Series | HDMI KVM Switch |
|---|---|
| Form Factor | 1U; Desktop; KVM module for LCD Console Drawer |
| Max. Resolution | 1080p FHD (1920 x 1080); 1600 x 1200; 1920 x 1200; 4K UHD (3840 x 2160) @60Hz |
| KVM Switch Ports | 8 Port |
| Local Users | 1 Local User |
| Extended Remote Users | 0 Extended Users |
| Global IP Users | 0 IP Users |
| Port Connector | HDMI + USB |
| Video Connections | DisplayPort; DVI-D; HDMI |
| Keyboard & Mouse Connection | USB |
| Audio Connection | Digital |
| Integrated USB Hub | 2 x USB 2.0 |
| Cascade | None |
| Optional Dual Power | Single Feed |
| Compliance | CE; FCC; REACH; RoHS3; UKCA; WEEE |
