描述
CV-802H
CyberView 8 Port VGA USB Hub KVM Switch – 1 Local + 1 Extended Remote Users
CV-802H 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明

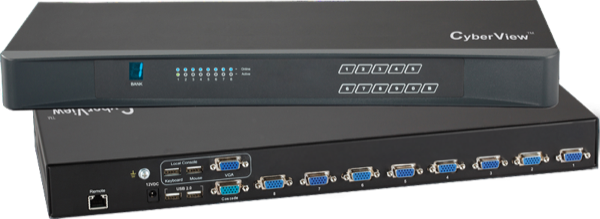

The CyberView CV-802H is a 8 port DB-15 USB Hub KVM Switch for VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles – 1 x local, 1 x remote extended.
The CyberView CV-802H VGA USB Hub KVM Switch is a low cost but highly reliable KVM Switching solution. This KVM supports single-user access to 8 sources from up to 2 consoles: 1x Local, and 1x Extended via an integrated CAT6 KVM Extender. VGA Hub KVMs feature two USB Peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM. Multi lingual OSD menu, port switching via OSD, front button & keyboard hotkeys are the user-friendly features provided by the KVM.
規格
| Product Series | VGA (DB-15) USB Hub KVM Switch |
|---|---|
| Form Factor | 1U; Desktop; KVM module for LCD Console Drawer |
| Max. Resolution | 1080p FHD (1920 x 1080); 1600 x 1200; 1920 x 1200 |
| KVM Switch Ports | 8 Port |
| Local Users | 1 Local User |
| Extended Remote Users | 1 Extended Users |
| Global IP Users | 0 IP Users |
| Port Connector | DB-15 |
| Video Connections | DB-15; VGA |
| Keyboard & Mouse Connection | USB |
| Audio Connection | None |
| Integrated USB Hub | 2 x USB 2.0 |
| Cascade | None |
| Optional Dual Power | Single Feed |
| Compliance | CE; FCC; REACH; RoHS3; UKCA; WEEE |
