CV-K101
CyberView 4K HDMI KVM Extender
CV-K101 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明

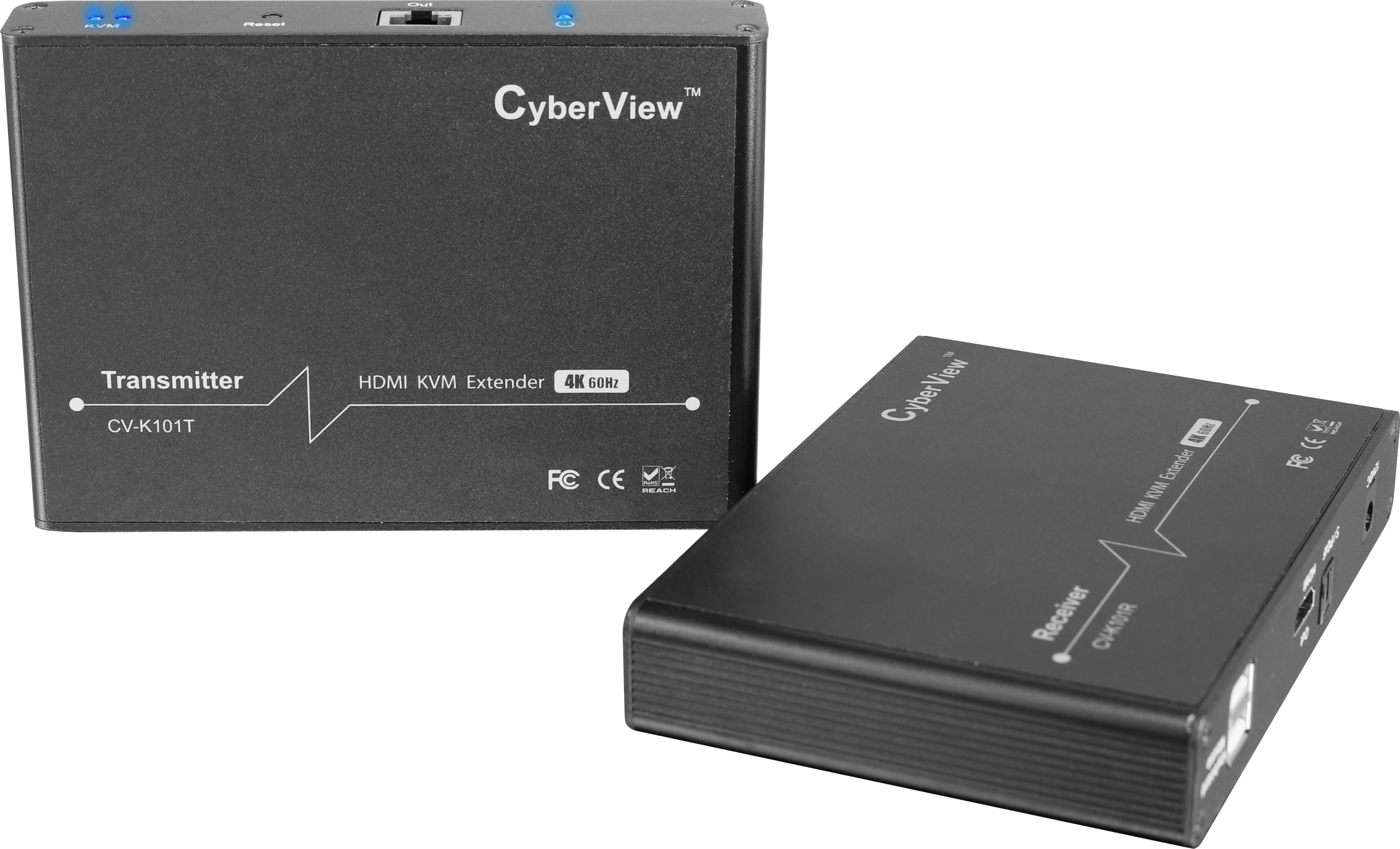

The CyberView CV-K101 CAT6 KVM Extender extends HDMI up to 4K resolution, digital audio (via HDMI), & USB-based signals over a single CAT6/7 cable up to 70 meters (230 feet) away. CV-K101 can be used to extend distances between connected computers, KVM switches, and user consoles.
High Quality 4K HDMI Video
- Supports resolutions up to 4K (4096 x 2160 Cinema 4K / 3840 x 2160 UHD) @ 60Hz
- HDMI 2.0 with HDR support
- The Transmitter includes one extra HDMI loop-out
Extend Computer or KVM Switch up to 70m / 230ft
- Extend computer, user station, or KVM Switch up to 70m / 230ft via a single CAT6/7 cable
- Unlike with analog extenders, distance doesn’t affect resolution; digital extenders preserve perfect quality for the full extension distance
IPColor – Uncompressed & No Latency
- Zero latency extension with visually lossless compression & industry leading audio extraction
- IPColor is the industry leading UHD video digital transmission technology
Digital Audio Support
- Extend audio along with video & USB
- HDMI-embedded audio
- Audio formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH
Surge / Lightning / ESD Protection
- CyberView HDMI KVM Extenders are designed with built in protection against electrostatic discharge, power surges, & lightning
- Leave your devices connected with peace of mind
Applications
- Surveillance System
- Broadcasting
- Healthcare Diagnostic
- Conference System
- Video Edit System
- Digital Signage
- Home Theater
@media (min-width: 1025px){body .uag-hide-desktop.uagb-google-map__wrap,body .uag-hide-desktop{display:none}}@media (min-width: 768px) and (max-width: 1024px){body .uag-hide-tab.uagb-google-map__wrap,body .uag-hide-tab{display:none}}@media (max-width: 767px){body .uag-hide-mob.uagb-google-map__wrap,body .uag-hide-mob{display:none}}.uagb-columns__wrap{position:relative}.uagb-columns__wrap .uagb-columns__inner-wrap{margin-left:auto;margin-right:auto;position:relative;z-index:2}.uagb-columns__wrap .uagb-columns__overlay{height:100%;width:100%;top:0;left:0;position:absolute}.uagb-columns__wrap .uagb-columns__video-wrap{height:100%;width:100%;top:0;left:0;position:absolute;overflow:hidden;z-index:0;-webkit-transition:opacity 1s;-o-transition:opacity 1s;transition:opacity 1s}.uagb-columns__wrap .uagb-columns__video-wrap video{max-width:100%;width:100%;height:100%;margin:0;line-height:1;border:none;display:inline-block;vertical-align:baseline;-o-object-fit:cover;object-fit:cover;background-size:cover}.uagb-columns__wrap .uagb-column__wrap{display:-webkit-box;display:-webkit-flex;display:-ms-flexbox;display:flex}.uagb-columns__wrap .uagb-columns__shape{overflow:hidden;position:absolute;left:0;width:100%;line-height:0;direction:ltr;z-index:1}.uagb-columns__wrap .uagb-columns__shape-top{top:-3px}.uagb-columns__wrap .uagb-columns__shape-bottom{bottom:-3px}.uagb-columns__wrap .uagb-columns__shape[data-negative=”false”].uagb-columns__shape-bottom{-webkit-transform:rotate(180deg);-ms-transform:rotate(180deg);transform:rotate(180deg)}.uagb-columns__wrap .uagb-columns__shape[data-negative=”true”].uagb-columns__shape-top{-webkit-transform:rotate(180deg);-ms-transform:rotate(180deg);transform:rotate(180deg)}.uagb-columns__wrap .uagb-columns__shape.uagb-columns__shape-flip svg{transform:translateX(-50%) rotateY(180deg)}.uagb-columns__wrap .uagb-columns__shape svg{display:block;width:-webkit-calc(100% + 1.3px);width:calc(100% + 1.3px);position:relative;left:50%;-webkit-transform:translateX(-50%);-ms-transform:translateX(-50%);transform:translateX(-50%)}.uagb-columns__wrap .uagb-columns__shape .uagb-columns__shape-fill{fill:#333;-webkit-transform-origin:center;-ms-transform-origin:center;transform-origin:center;-webkit-transform:rotateY(0deg);transform:rotateY(0deg)}.uagb-columns__wrap .uagb-columns__shape.uagb-columns__shape-above-content{z-index:9;pointer-events:none}.uagb-columns__valign-center .uagb-column__wrap,.uagb-columns__valign-middle .uagb-column__wrap{-webkit-box-align:center;-webkit-align-items:center;-ms-flex-align:center;align-items:center}.uagb-columns__valign-top .uagb-column__wrap{-webkit-box-align:flex-start;-webkit-align-items:flex-start;-ms-flex-align:flex-start;align-items:flex-start}.uagb-columns__valign-bottom .uagb-column__wrap{-webkit-box-align:flex-end;-webkit-align-items:flex-end;-ms-flex-align:flex-end;align-items:flex-end}.uagb-columns__inner-wrap{display:flex;flex-wrap:nowrap}.uagb-columns__columns-1>.uagb-column__wrap{width:100%}.uagb-columns__columns-2>.uagb-column__wrap{width:50%}.uagb-columns__columns-3>.uagb-column__wrap{width:33.33%}.uagb-columns__columns-4>.uagb-column__wrap{width:25%}.uagb-columns__columns-5>.uagb-column__wrap{width:20%}.uagb-columns__columns-6>.uagb-column__wrap{width:16.66%}.uagb-columns__gap-nogap>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:0}.uagb-columns__gap-default>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:10px}.uagb-columns__gap-narrow>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:5px}.uagb-columns__gap-extended>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:15px}.uagb-columns__gap-wide>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:20px}.uagb-columns__gap-wider>.wp-block[data-type=”uagb/column”] .uagb-column__inner-wrap{padding:30px}@media (max-width: 976px){.uagb-columns__stack-tablet>.uagb-columns__columns-1>.uagb-column__wrap,.uagb-columns__stack-tablet>.uagb-columns__columns-2>.uagb-column__wrap,.uagb-columns__stack-tablet>.uagb-columns__columns-3>.uagb-column__wrap,.uagb-columns__stack-tablet>.uagb-columns__columns-4>.uagb-column__wrap,.uagb-columns__stack-tablet>.uagb-columns__columns-5>.uagb-column__wrap,.uagb-columns__stack-tablet>.uagb-columns__columns-6>.uagb-column__wrap{width:100% !important}.uagb-columns__stack-tablet>.uagb-columns__inner-wrap{display:block}.uagb-columns__stack-tablet.uagb-columns__reverse-tablet .uagb-columns__inner-wrap{display:flex;flex-direction:column-reverse}.uagb-columns__reverse-tablet .uagb-columns__inner-wrap{display:flex;flex-direction:row-reverse}}@media (max-width: 767px){.uagb-columns__stack-mobile>.uagb-columns__columns-1>.uagb-column__wrap,.uagb-columns__stack-mobile>.uagb-columns__columns-2>.uagb-column__wrap,.uagb-columns__stack-mobile>.uagb-columns__columns-3>.uagb-column__wrap,.uagb-columns__stack-mobile>.uagb-columns__columns-4>.uagb-column__wrap,.uagb-columns__stack-mobile>.uagb-columns__columns-5>.uagb-column__wrap,.uagb-columns__stack-mobile>.uagb-columns__columns-6>.uagb-column__wrap{width:100% !important}.uagb-columns__stack-mobile>.uagb-columns__inner-wrap{display:block}.uagb-columns__stack-mobile.uagb-columns__reverse-mobile .uagb-columns__inner-wrap{display:flex;flex-direction:column-reverse}.uagb-columns__reverse-mobile .uagb-columns__inner-wrap{display:flex;flex-direction:row-reverse}}@media (min-width: 768px) and (max-width: 1024px){.wp-block-uagb-columns.uagb-columns__wrap.uagb-columns__background-image{background-attachment:scroll}}@media (max-width: 449px){.uagb-columns__wrap .uagb-column__wrap.uagb-column__background-image{background-attachment:scroll !important}}.uagb-column__wrap{position:relative;overflow:hidden}.uagb-column__wrap .uagb-column__inner-wrap{margin-left:auto;margin-right:auto;position:relative;z-index:2;width:100%}.uagb-column__wrap.uagb-column__align-left .uagb-column__inner-wrap{margin-left:0;margin-right:auto}.uagb-column__wrap.uagb-column__align-right .uagb-column__inner-wrap{margin-left:auto;margin-right:0}.uagb-column__wrap .uagb-column__overlay{height:100%;width:100%;top:0;left:0;position:absolute}.uagb-column__wrap .uagb-column__video-wrap{height:100%;width:100%;top:0;left:0;position:absolute;overflow:hidden;z-index:0;-webkit-transition:opacity 1s;-o-transition:opacity 1s;transition:opacity 1s}.uagb-column__wrap .uagb-column__video-wrap video{max-width:100%;width:100%;height:100%;margin:0;line-height:1;border:none;display:inline-block;vertical-align:baseline;-o-object-fit:cover;object-fit:cover;background-size:cover}.wp-block-uagb-columns>.editor-inner-blocks>.editor-block-list__layout>[data-type=”uagb/column”]{display:flex;flex-direction:column;flex:1;padding-left:0;padding-right:0;margin-left:-14px;margin-right:-14px;min-width:0;word-break:break-word;overflow-wrap:break-word;flex-basis:100%}@media (max-width: 976px){.uagb-column__align-tablet-left .uagb-column__inner-wrap{margin-left:0;margin-right:auto}.uagb-column__align-tablet-right .uagb-column__inner-wrap{margin-left:auto;margin-right:0}}@media (max-width: 767px){.uagb-column__align-mobile-left .uagb-column__inner-wrap{margin-left:0;margin-right:auto}.uagb-column__align-mobile-right .uagb-column__inner-wrap{margin-left:auto;margin-right:0}}@media (max-width: 449px){.uagb-columns__wrap.uagb-columns__background-image{background-attachment:scroll !important}}.uagb-block-5882a81f.uagb-columns__wrap{padding-top: 0;padding-bottom: 20px;padding-left: 0;padding-right: 0;}.uagb-block-5882a81f .uagb-columns__video-wrap{opacity: 0.5;}.uagb-block-5882a81f > .uagb-columns__inner-wrap{max-width: 1440px;}.uagb-block-5882a81f .uagb-column__inner-wrap{padding: 10px;}.uagb-block-5882a81f .uagb-columns__shape.uagb-columns__shape-top .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-5882a81f .uagb-columns__shape.uagb-columns__shape-bottom .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-5882a81f.wp-block-uagb-columns{box-shadow: 0 0 ;}.wp-block-uagb-column.uagb-block-6a5f4ebc.uagb-column__wrap{padding-bottom: 0;width: 50%;}.wp-block-uagb-column.uagb-block-b994cf01.uagb-column__wrap{padding-bottom: 0;width: 50%;}.uagb-block-dfda2f54.uagb-columns__wrap{padding-top: 10px;padding-bottom: 20px;padding-left: 0;padding-right: 0;}.uagb-block-dfda2f54 .uagb-columns__video-wrap{opacity: 0.5;}.uagb-block-dfda2f54 > .uagb-columns__inner-wrap{max-width: 1440px;}.uagb-block-dfda2f54 .uagb-column__inner-wrap{padding: 10px;}.uagb-block-dfda2f54 .uagb-columns__shape.uagb-columns__shape-top .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-dfda2f54 .uagb-columns__shape.uagb-columns__shape-bottom .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-dfda2f54.wp-block-uagb-columns{box-shadow: 0 0 ;}.wp-block-uagb-column.uagb-block-bf47f160.uagb-column__wrap{padding-bottom: 0;width: 50%;}.wp-block-uagb-column.uagb-block-9fca3e30.uagb-column__wrap{padding-bottom: 0;width: 50%;}.uagb-block-1ede3024.uagb-columns__wrap{padding-top: 10px;padding-bottom: 20px;padding-left: 0;padding-right: 0;}.uagb-block-1ede3024 .uagb-columns__video-wrap{opacity: 0.5;}.uagb-block-1ede3024 > .uagb-columns__inner-wrap{max-width: 1440px;}.uagb-block-1ede3024 .uagb-column__inner-wrap{padding: 10px;}.uagb-block-1ede3024 .uagb-columns__shape.uagb-columns__shape-top .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-1ede3024 .uagb-columns__shape.uagb-columns__shape-bottom .uagb-columns__shape-fill{fill: rgba(51,51,51,1);}.uagb-block-1ede3024.wp-block-uagb-columns{box-shadow: 0 0 ;}.wp-block-uagb-column.uagb-block-fab4a3c5.uagb-column__wrap{padding-bottom: 0;width: 50%;}.wp-block-uagb-column.uagb-block-90f675c1.uagb-column__wrap{width: 50%;}@media only screen and (max-width: 976px) {.uagb-block-5882a81f.uagb-columns__wrap{padding-top: 0;padding-bottom: 0;}.wp-block-uagb-column.uagb-block-6a5f4ebc.uagb-column__wrap{padding-bottom: 33px;}.wp-block-uagb-column.uagb-block-b994cf01.uagb-column__wrap{padding-bottom: 33px;}.uagb-block-dfda2f54.uagb-columns__wrap{padding-top: 0;padding-bottom: 0;}.wp-block-uagb-column.uagb-block-bf47f160.uagb-column__wrap{padding-bottom: 33px;}.wp-block-uagb-column.uagb-block-9fca3e30.uagb-column__wrap{padding-bottom: 33px;}.uagb-block-1ede3024.uagb-columns__wrap{padding-top: 0;}.wp-block-uagb-column.uagb-block-fab4a3c5.uagb-column__wrap{padding-bottom: 33px;}}
規格
| Product Series | CAT6 KVM Extender |
|---|---|
| Display Resolution | 4K UHD (3840 x 2160) @60Hz |
| Local Users | 1 Local User |
| Extended Remote Users | 1 Extended Users |
| Global IP Users | 0 IP Users |
| Video Connections | HDMI |
| Keyboard & Mouse Connection | USB |
| Audio Connection | Digital |
| Extension Method | CAT6; CAT7; CATx |
| Max. Extension Distance | 70 Meters |
| Compliance | CE; FCC; REACH; RoHS3; UKCA |
| Product Type | 4K HDMI KVM Extender |
