描述
CV-S101
Cyberview VGA USB CAT6 KVM Extender
CV-S101 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明

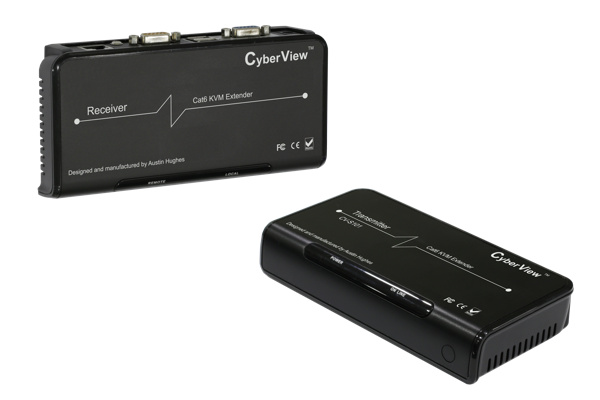

The CyberView CV-S101 CAT6 KVM Extender extends VGA and USB-based signals over a single CAT5/6 cable up to 150 meters (500 feet) away. CV-S101 can be used to extend distances between connected computers, KVM switches, and user consoles.
The CyberView CV-S101 CAT6 KVM Extender extends VGA and USB-based signals over a single CAT5/6 cable. The included transmitter-receiver pair that enables you to locate the source(s) in a clean, secure area and access them from any convenient remote location. CV-S101 can be used to extend distances between connected computers, KVM switches, and user consoles. The remote user (keyboard, monitor, and mouse), connected to the receiver, can be up to 150 meters (500 feet) from the source / PC.
規格
| Product Series | CAT6 KVM Extender |
|---|---|
| Display Resolution | 1080p FHD (1920 x 1080); 1920 x 1200 |
| Local Users | 1 Local User |
| Extended Remote Users | 1 Extended Users |
| Global IP Users | 0 IP Users |
| Video Connections | DB-15; VGA |
| Keyboard & Mouse Connection | USB |
| Audio Connection | None |
| Extension Method | CAT5; CAT6; CATx |
| Max. Extension Distance | 150 Meters |
| Compliance | CE; FCC; RoHS3; UKCA |
| Product Type | VGA (DB-15) KVM Extender |
