描述
F-1.6

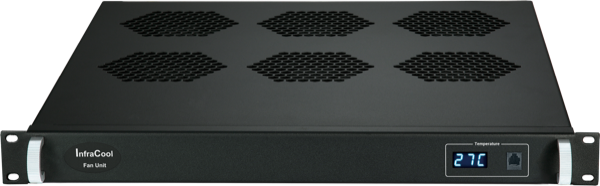

InfraCool Basic 1U Rackmount Fan Tray – 6 Fan Kit (648 CFM)
F-1.6 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
F-1.6 is a basic rackmount fan tray (6 fans). Extract hot air out (mount at top), equipment cooling (mount at middle) or cool air in (mount at bottom).
InfraCool Basic 1U rack mount Fan Tray with 6 Fans (F-1.6) provides a reliable airflow solution which can be mounted at the top, middle or bottom of the rack.
With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Basic Fan Unit series is designed as a cost effective but reliable airflow solution. A full range of form factor options are available for different data center needs.
規格
| Product Series | Basic |
|---|---|
| Form Factor | 1U |
| Fans | 6 Fans |
| Fan Capacity | 108 CFM |
| Max. Total Fan Capacity | 648 CFM |
| Control Method | Local |
| Cascade | None |
| Features | Front Panel LED; Local Temperature Monitoring |
| MTBF | 50000 |
| Compliance | CE; FCC; REACH; RoHS3 |
