描述
IP-802

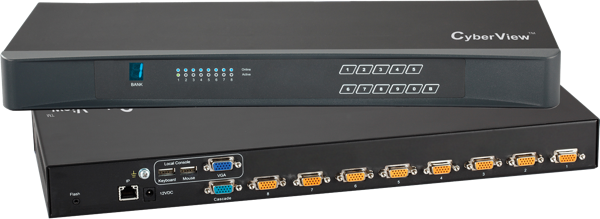

CyberView 8 Port VGA KVM Switch – 1 Local + 1 IP Users
IP-802 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The CyberView IP-802 is a 8 port DB-15 KVM Switch for VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles – 1 x local, 1 x network IP.
The CyberView IP-802 VGA KVM Switch is a low cost but highly reliable KVM Switching solution. This KVM supports single-user access to 8 sources from up to 2 consoles: 1x Local, and 1x Over-IP from a web browser using our HTML-based java-free interface. CyberView VGA KVMs supports multiple input styles and multiple platforms. Multi lingual OSD menu, port switching via OSD, front button & keyboard hotkeys are the user-friendly features provided by the KVM.
規格
| Product Series | VGA (DB-15) KVM Switch |
|---|---|
| Form Factor | 1U; Desktop; KVM module for LCD Console Drawer |
| Max. Resolution | 1080p FHD (1920 x 1080); 1600 x 1200; 1920 x 1200 |
| KVM Switch Ports | 8 Port |
| Local Users | 1 Local User |
| Extended Remote Users | 0 Extended Users |
| Global IP Users | 1 IP Users |
| Port Connector | DB-15 |
| Video Connections | DB-15; VGA |
| Keyboard & Mouse Connection | PS/2; USB |
| Audio Connection | None |
| Integrated USB Hub | None |
| Cascade | 8 Levels |
| Optional Dual Power | Single Feed |
| Compliance | CE; FCC; REACH; RoHS3; UKCA; WEEE |
