U-IP802

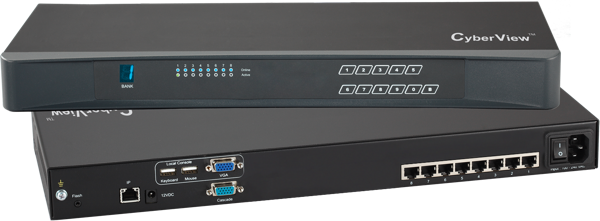

CyberView 8 Port Combo Cat6 KVM Switch – 1 Local + 1 IP Users
U-IP802 屬Austin Hughes伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為Austin Hughes產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The CyberView U-IP802 is a 8 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles – 1 x local, 1 x network IP.
The CyberView U-IP802 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 8 sources from up to 2 consoles: 1x Local, and 1x Over-IP from a web browser using our HTML-based java-free interface. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
規格
| Product Series | Cat6 KVM Switch; Combo Cat6 KVM Switch |
|---|---|
| Form Factor | 1U; Desktop; KVM module for LCD Console Drawer |
| Max. Resolution | 1080p FHD (1920 x 1080); 1600 x 1200; 1920 x 1200 |
| KVM Switch Ports | 8 Port |
| Local Users | 1 Local User |
| Extended Remote Users | 0 Extended Users |
| Global IP Users | 1 IP Users |
| Port Connector | Cat6 |
| Video Connections | DisplayPort; DVI-D; HDMI; USB-C; VGA |
| Keyboard & Mouse Connection | PS/2; USB |
| Audio Connection | None |
| Integrated USB Hub | None |
| Cascade | 8 Levels |
| Optional Dual Power | Dual Feed; Single Feed |
| Compliance | CE; FCC; REACH; RoHS3; UKCA; WEEE |
