AVTECH DGC5105TS

描述

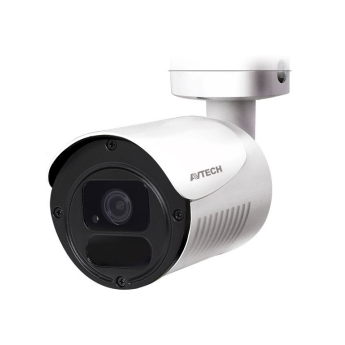

AVTECH DGC5105TS

Quadbrid 5MP IR Bullet Camera





FEATURES

(1) 1/2.5” CMOS Sensor with 5MP video output
(2) Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
(3) Quadbrid video output with TVI, CVI, AHD & CVBS to fulfill different customers’ requirements
(4) DWDR to increase image recognizability in overexposure and dark areas
(5) Day and night 24-hour surveillance with IR effective distance up to 25 meters
(6) IP66 for weather-proof application
(7) Camera parameters adjustable when used with AVTECH HD CCTV DVR



SPECIFICATIONS

MODEL DGC5105TS
Video Mode TVI, CVI, AHD & CVBS switchable
Pick-up Element 1/ 2.5” CMOS image sensor
Number of Pixels 2560 (H) x 1920 (V)
Video Frame Rate 5MP @ 20fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/30 (1/25) sec ~ 1/ 60000 (1/ 50000) sec
Lens f3.6mm / F1.8 f2.8mm / F1.8
Lens Angle 96° (Horizontal) / 50° (Vertical) /
116° (Diagonal)
100° (Horizontal) / 52° (Vertical) /
121° (Diagonal)
IR LED 2 units
IR Effective Distance Up to 25 meters
IR Shift YES
Day & Night Mode YES
Noise Reduction YES
IRIS Mode AES
White Balance AUTO
AGC AUTO
Sharpness Adjustable
Flickerless 50HZ / 60HZ / OFF
BLC Adjustable
DWDR YES
IP Rating IP66
Operating Temperature -20℃ ~ 40℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 0.5A
Current Consumption (±10%) 100mA (IR lED OFF); 240mA (IR LED ON)
Net weight (Kg) 0.36
Optional Junction Box AVA456-WBKT
Certification CE
