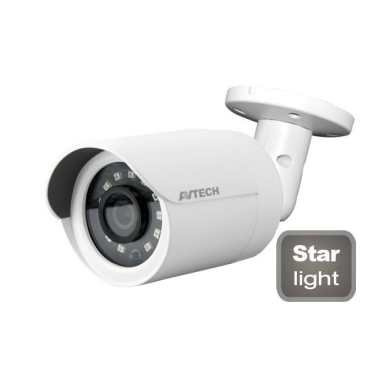

AVTECH DGC8106AT
8MP 4-in-1 IR Bullet Camera
FEATURES
(1) 1/2.8” SONY CMOS Sensor with 8MP video output
(2) Quadbrid video output with TVI, CVI, AHD & CVBS to fulfill different customers’ requirements
(3) Starlight visibility (0.001 Lux / F1.6) to offer clear & color images even at night
(4) Microphone built-in for audio recording
(5) WDR to increase image recognizability in overexposure and dark areas
(6) Day and night 24-hour surveillance with IR effective distance up to 25 meters
(7) IP67 for weather-proof application
(8) Camera parameters adjustable when used with AVTECH HD CCTV DVR
SPECIFICATIONS
MODEL DGC8106AT
Video Mode TVI, CVI, AHD & CVBS switchable
Pick-up Element 1/2.8’’ SONY CMOS
Number of Pixels 3840(H)×2160(V)
Video Frame Rate NTSC: 8MP@15fps / PAL: 8MP@12.5fps
Min. Illumination 0.001Lux / F1.6 (AGC ON), 0 Lux (IR LED ON)
S/N Ratio 62dB
Shutter Speed AUTO
Lens f3.6mm/F1.6
Lens Angle 87.5° (Horizontal) / 44.4° (Vertical) / 104.9° (Diagonal)
IR LED 18 units
IR Effective Distance 25 meters
Day & Night Mode Auto / Color / (B/W) / EXT
Microphone Built-in YES (TVI Mode available)
Noise Reduction 2D NR
White Balance ATW / Manual
AGC YES
BLC YES
WDR YES
Flip YES
Mirror YES
IP Rating IP67
Operating Temperature -20℃ ~ 60℃
Operating Humidity 10% – 90%RH
Power Source (±10%) DC12V
Power Consumption (±10%) < 5W
Net Weight (g) 327
Optional Bracket / Junction Box AVA126-WHKT / AVA156-WHKT / AVA456-BBKT
