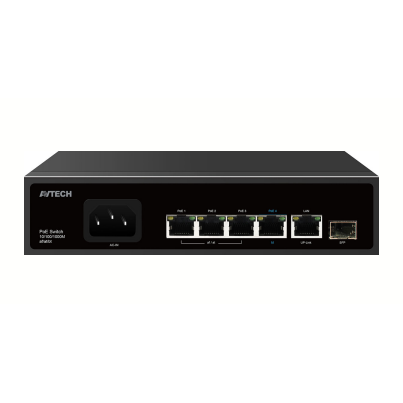

AVTECH DGS4110PG
4xGE (POE) + 1xGE (UP-LINK) + 1xSFP PoE Switch
FEATURES
- AI Watchdog Function
- 6KV Lightning & 8KV ESD Protection
- bt 60W High Power Support
SPECIFICATIONS
Ports PoE (1~3):
10/100/1000Mbps PoE ports (RJ45)
PoE (4):
10/100/1000Mbps PoE port (RJ45), Supports bt 60W
High Power
LAN:
10/100/1000Mbps uplink port (RJ45)
SFP:
10/100/1000Mbps SFP port
Transmission Rate 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half
Duplex
Transmission Distance 130m
Performance
Specifications
Bandwidth: 12Gbps
Network Latency (10 to 1000Mbps):
≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate:
14800pps the most for 10M port, 148800pps the most for
100M port;1488000pps the most for 1000M port
Networking Standard IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support Power Input:
AC 90~240V Total ≤ 65W
AI Watchdog: Port 1~4
Power Output:
PoE 1~3 Port: 1/2 (+52V), 3/6(GND)≤30W
PoE 4 Port: 1245 (+53V), 3678 (GND) Compatible1/2
(+52V), 3/6 (GND) ≤ 60W
Protection Level Lightning Protection: 6KV
ESD Protection: 8KV
Dimensions (mm) 187 * 139 * 43
Net Weight (kg) 1
Working Environment Operating Temperature: -30°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing
Package Content AC Power Cable, User Manual
