描述
AVTECH DGSF210PE 是 PoE 交換機，設 15 個 100M 及 1 個 1G PoE 端口、2 個 1G 上行端口及 1 個 SFP，部分端口支援 802.3bt 60W，具 6KV 防雷及最長 250 米傳輸模式。香港防盜為安裝商及經銷商，規格以原廠為準。

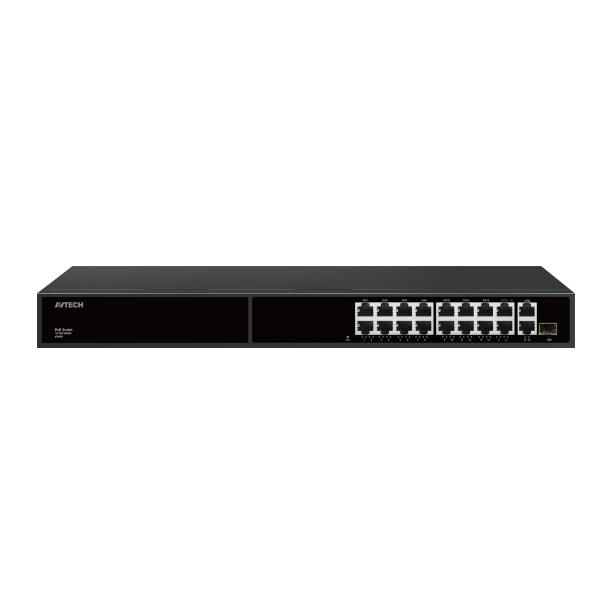

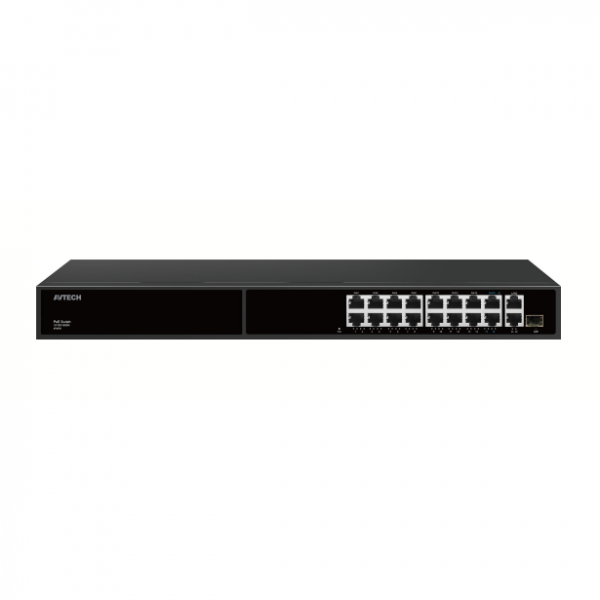

AVTECH DGSF210PE
15xFE & 1xGE + 2xGE (UP-LINK) + 1xSFP PoE Switch
FEATURES
- AI Watchdog Function
- 6KV Lightning & 8KV ESD Protection
- bt 60W High Power Support
- Auto-Adaption 250m Transmission
SPECIFICATIONS
Ports PoE (1~14):
10/100Mbps PoE ports (RJ45)
PoE (15):
10/100Mbps PoE ports, Supports bt 60W High Power
PoE (16):
10/100/1000Mbps PoE port (RJ45), Supports bt 60W
High Power
LAN (1~2):
10/100/1000Mbps uplink ports (RJ45)
SFP:
10/100/1000Mbps SFP port
Transmission Rate 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half
Duplex
Transmission Distance 100Mbps /10Mbps,Auto-Adaption 250m
Performance
Specifications
Bandwidth: 12.8Gbps
Network Latency (10 to 1000Mbps):
≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate:
14800pps the most for 10M port, 148800pps the most for
100M port;1488000pps the most for 1000M port
Networking Standard IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support Power Input:
AC 90~240V Total ≤ 300W
AI Watchdog: Port 1~16
Power Output:
PoE 1~14 Port: 1/2 (+52V), 3/6 (GND) ≤ 30W
PoE 15~16 Port: 1245 (+53V), 3678 (GND) Compatible
1/2 (+52V), 3/6 (GND) ≤ 60W
Protection Level Lightning Protection: 6KV
ESD Protection: 8KV
Dimensions (mm) 440 * 180 * 45
Net Weight (kg) 2.65
Working Environment Operating Temperature: -30°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing
Package Content AC Power Cable, User Manual
