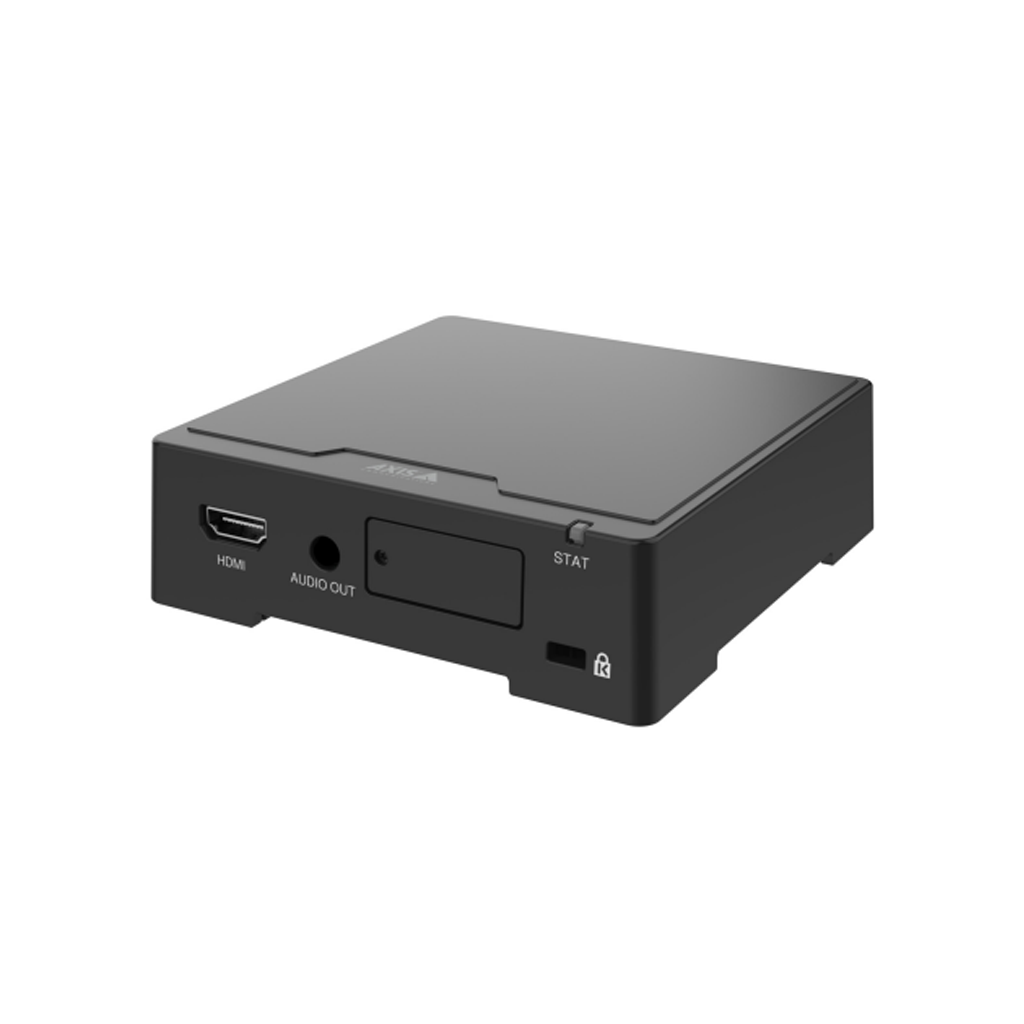

AXIS D1110
Video Decoder 4K
Features
- 4K video with HDMI output
- PoE or DC
- Audio out
- Seamless sequencing and multiview
- Intuitive Axis interface
Technical specifications
| Casing | IP30-rated Aluminum casing Color: NCS S 9000-N Security slot |
| Mounting | AXIS T91A03 DIN Rail Clip A, mounting bracket, compatible with VESA mounting hole patterns |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4 10–28 V DC, max 17 W |
| Connectors | Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE Audio: 3.5 mm line out, stereo Power: DC input, terminal block 2x USB type A SD-card slot (Highspeed/UHS-1) HDMI type Ab, CEC supported |
| Storage | Support for microSD/microSDHC/microSD UHS-1 card |
| Operating conditions | 0 °C to 40 °C (32 °F to 104 °F) Humidity 10–85% RH (non-condensing) |
| Storage conditions | -20 °C to 65 °C (-4 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | For the overall product dimensions, see the dimension drawing in this datasheet |
| Weight | 500 g (1.10 lb) |
| Box content | Video decoder, installation guide, terminal block connector |
