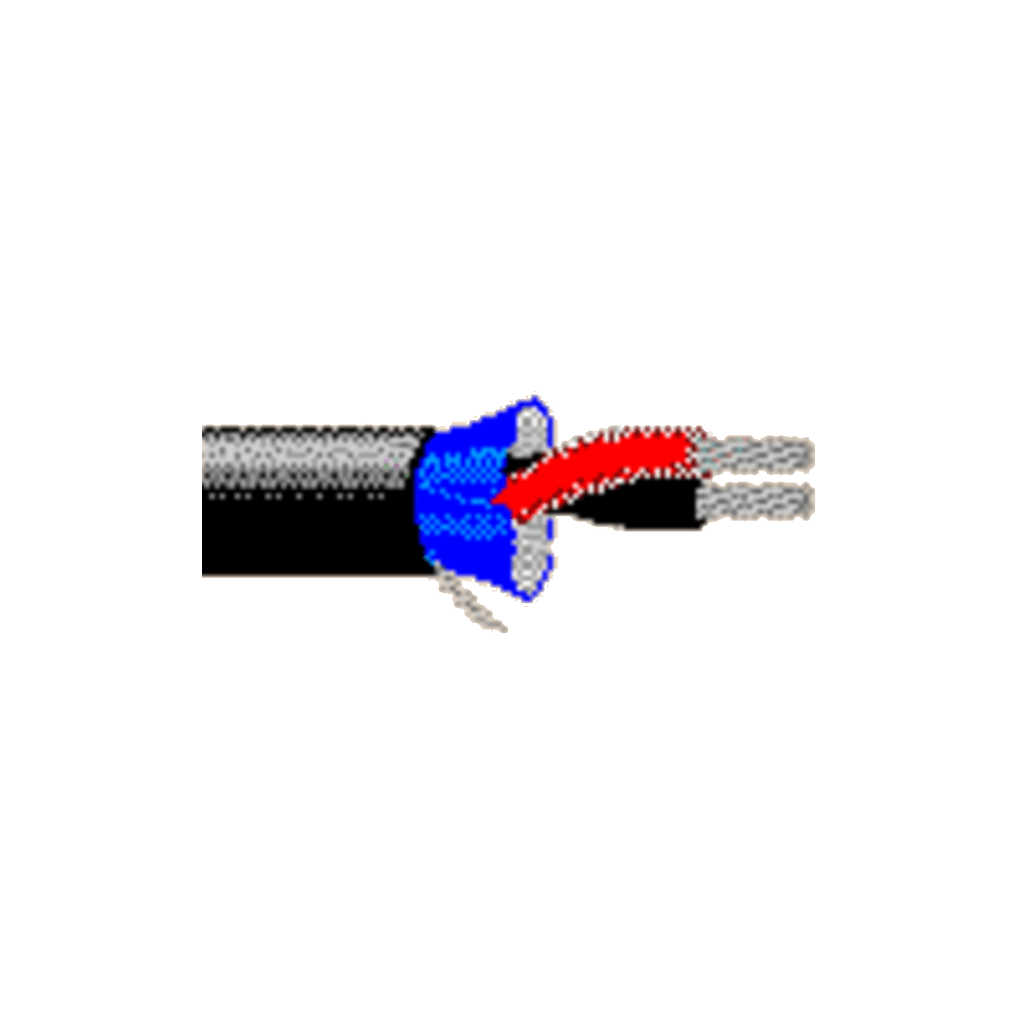

BELDEN 1350SB
AES/EBU Digital Audio, 1 Pair 24 AWG, LSZH Jacket, CMG-LS, Shipboard ABS
Product Description
Digital Audio Cable, Rated-CMG-LS, 1-24 AWG tinned copper pair, Datalene® insulation, overall Beldfoil® shield, drain, LSZH jacket
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 0.058 in (1.5 mm) | Red & Black |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.179 in | |
