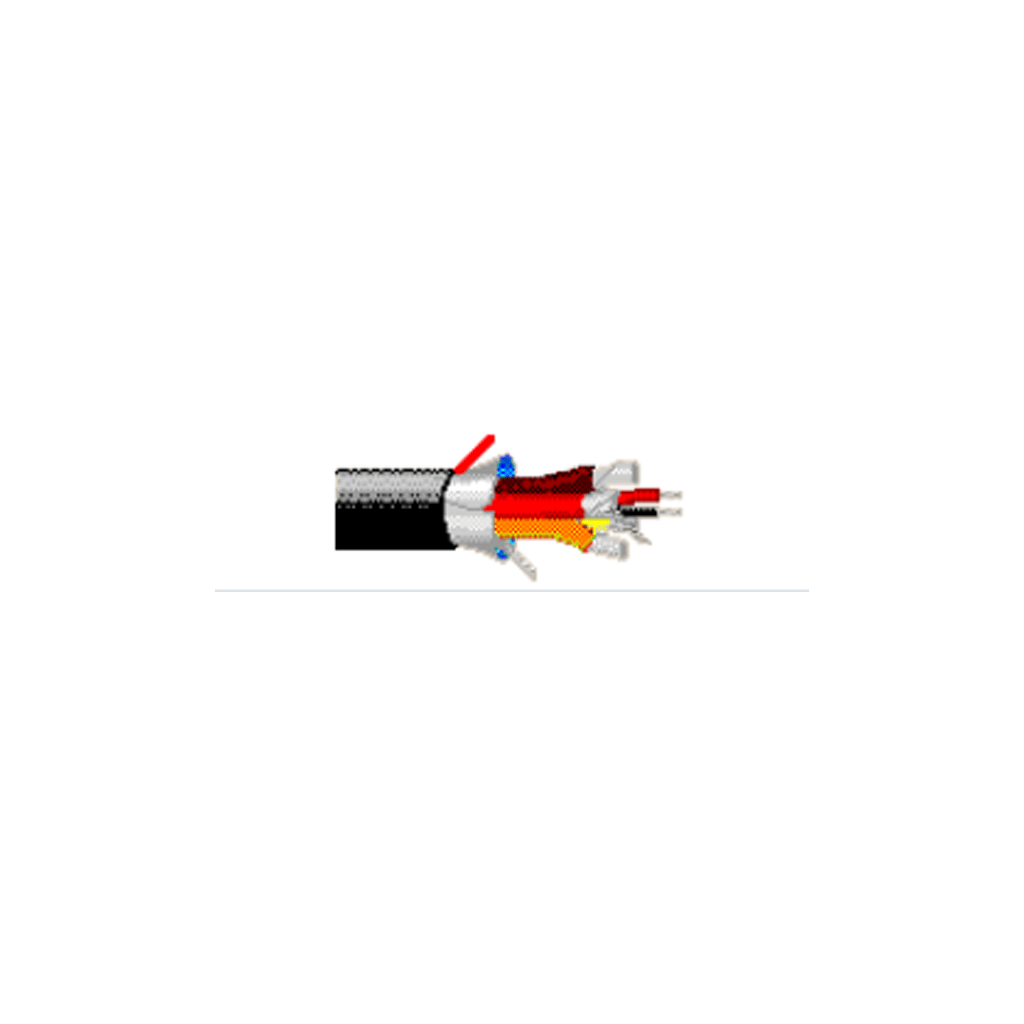

BELDEN 1414R
Audio Snake Cable, #24-24pr, TC, Indiv. Shielded, CMR
Product Description
Audio Snake Cable, 24-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, PVC jacket
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.04 in (1.0 mm) | Brown and Numbered 1, Red and Numbered 2, Orange and Numbered 3, Yellow and Numbered 4, Green and Numbered 5, Blue and Numbered 6, Purple and Numbered7, Gray and Numbered 8, White and Numbered 9, Black and Numbered 10, Tan and Numbered 11, Pink and Numbered 12, Gray/Brown Stripe and Numbered 13, Gray/Red Stripe and Numbered 14, Gray/Orange Stripe and Numbered 15, Gray/Yellow Stripe and Numbered 16, Gray/Green Stripe and Numbered 17, Gray/Blue Stripe and Numbered 18, Gray/Purple Stripe and Numbered 19, Gray/Gray Stripe and Numbered 20, Gray/White Stripe and Numbered 21, Gray/Black Stripe and Numbered 22, Gray/Tan Stripe and Numbered 23, Gray/Pink Stripe and Numbered 24, Red, Black |
| Inner Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
