BELDEN 1504A

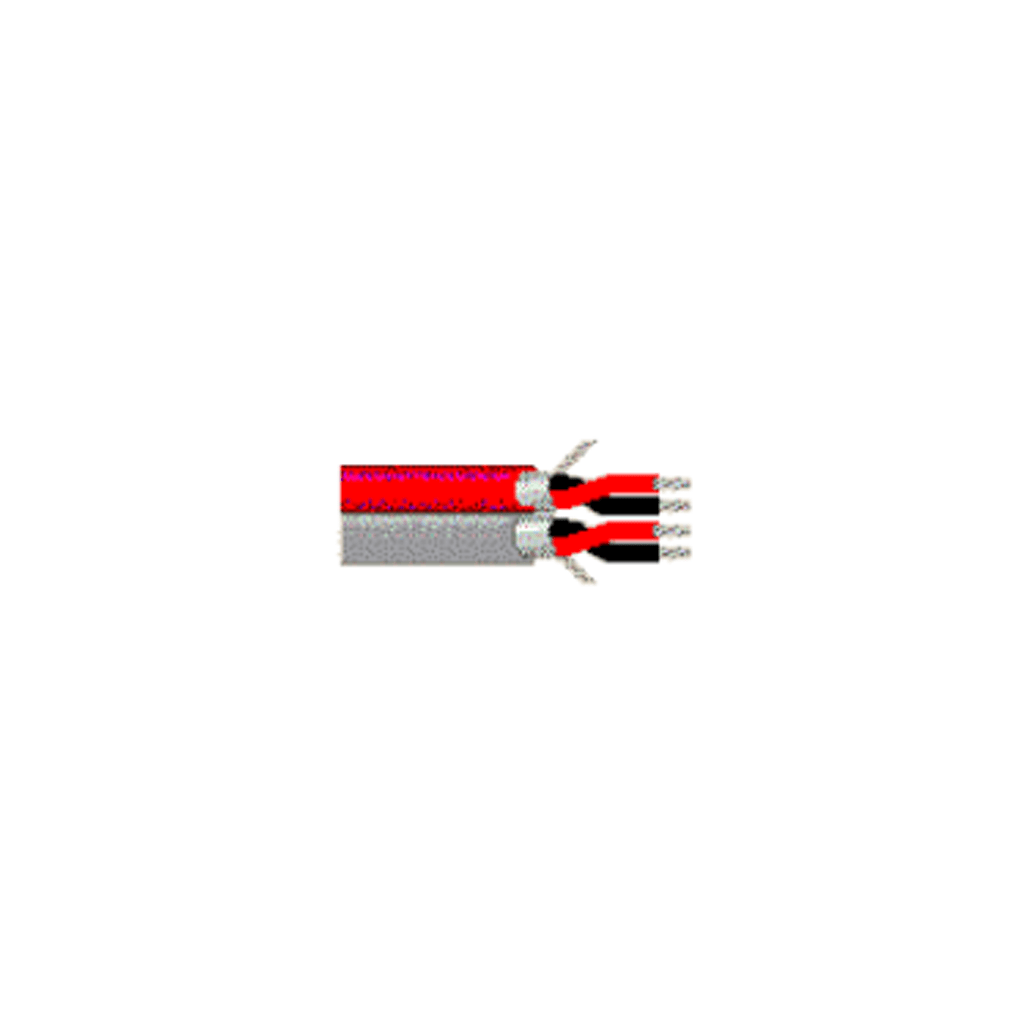

1504A – Audio Cable, #22-2pr, TC, O/A Foil, CM
Product Description
Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper pairs with PVC insulation, Beldfoil® shield, drain, PVC jacket, parallel construction
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PVC – Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.050 in (1.3 mm) | Black & Red |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
