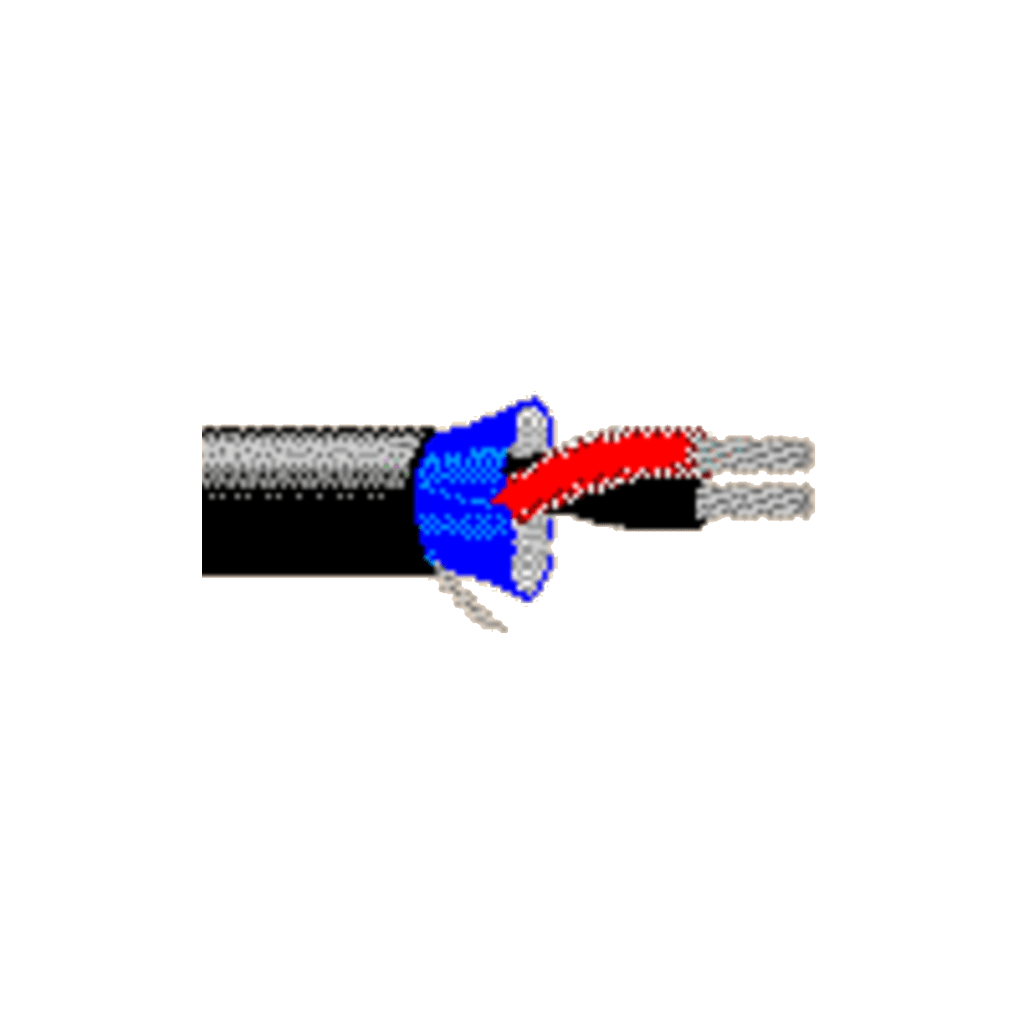

BELDEN 1508A
Audio Cable, #24-2c, TC, O/A Foil, CM
Product Description
Audio Cable, CM-Rated, 1-24 AWG stranded tinned copper pair with polyolefin insulation, Beldfoil® shield, drain, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.04 in mm | Black & Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Tri-Laminate (Alum+Poly+PVC) | 100% | 24 AWG (7×32) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.024 in (0.61 mm) | 0.131 in | ||
