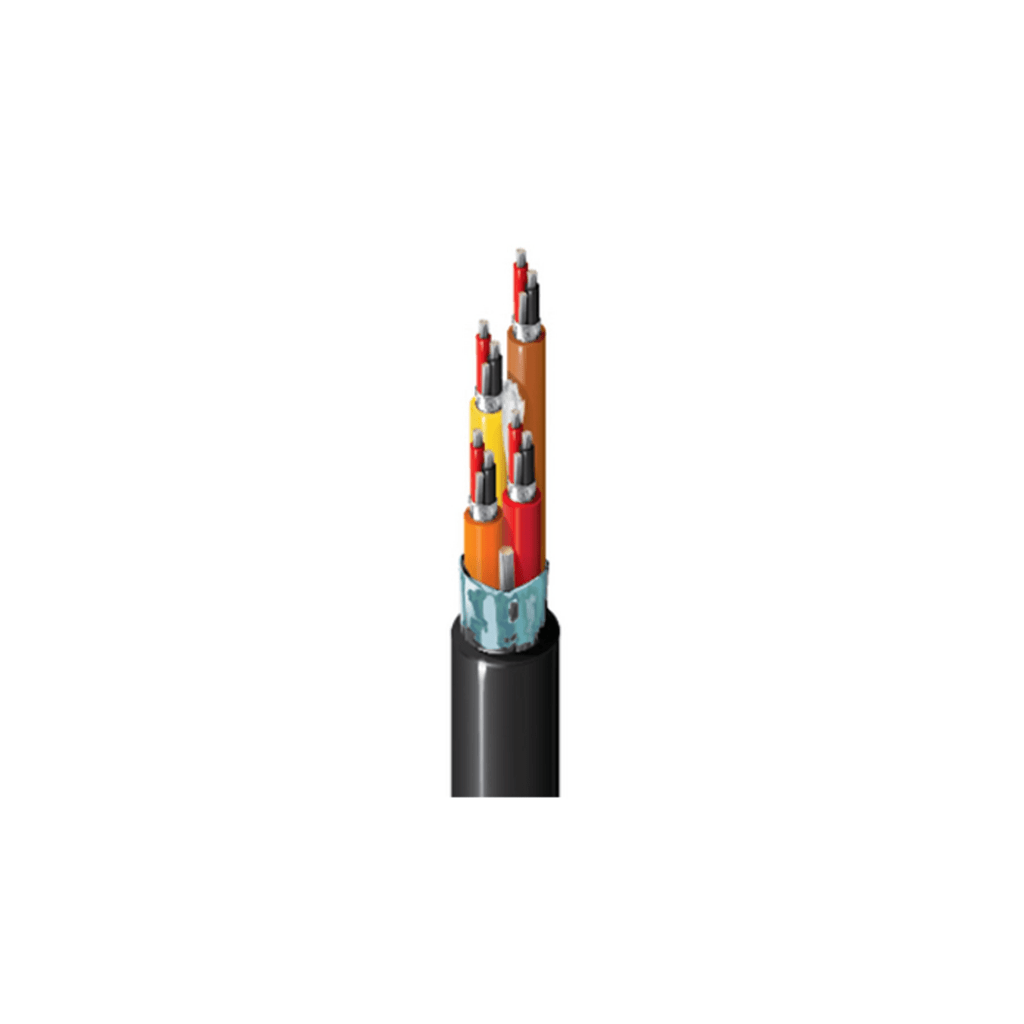

BELDEN 1513C
Audio Snake Cable, #24-12pr Str TC, Ind. Shielded & Jacketed, O/A Foil, PVC Jkt, Ripcord, CM, Flexible
Product Description
Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil® Shield, PVC jacket, Ripcord, CM, Flexible
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.04 in (1.0 mm) | Black & Red, Yellow, Green, Blue, Violet, Grey, White, Black, Tan, Pink, Brown, Red, Orange |
| Inner Shield | ||||
| Element | Shield Type | Material | Coverage | Drainwire Type |
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (65×36) TC | |
