BELDEN 1513ECH
1513ECH – Audio Snake Cable, 12 pr #24 Str TC, Ind. Shielded & Jacketed, O/A Foil, LSZH-C Jkt, Ripcord, Flexible
Product Description

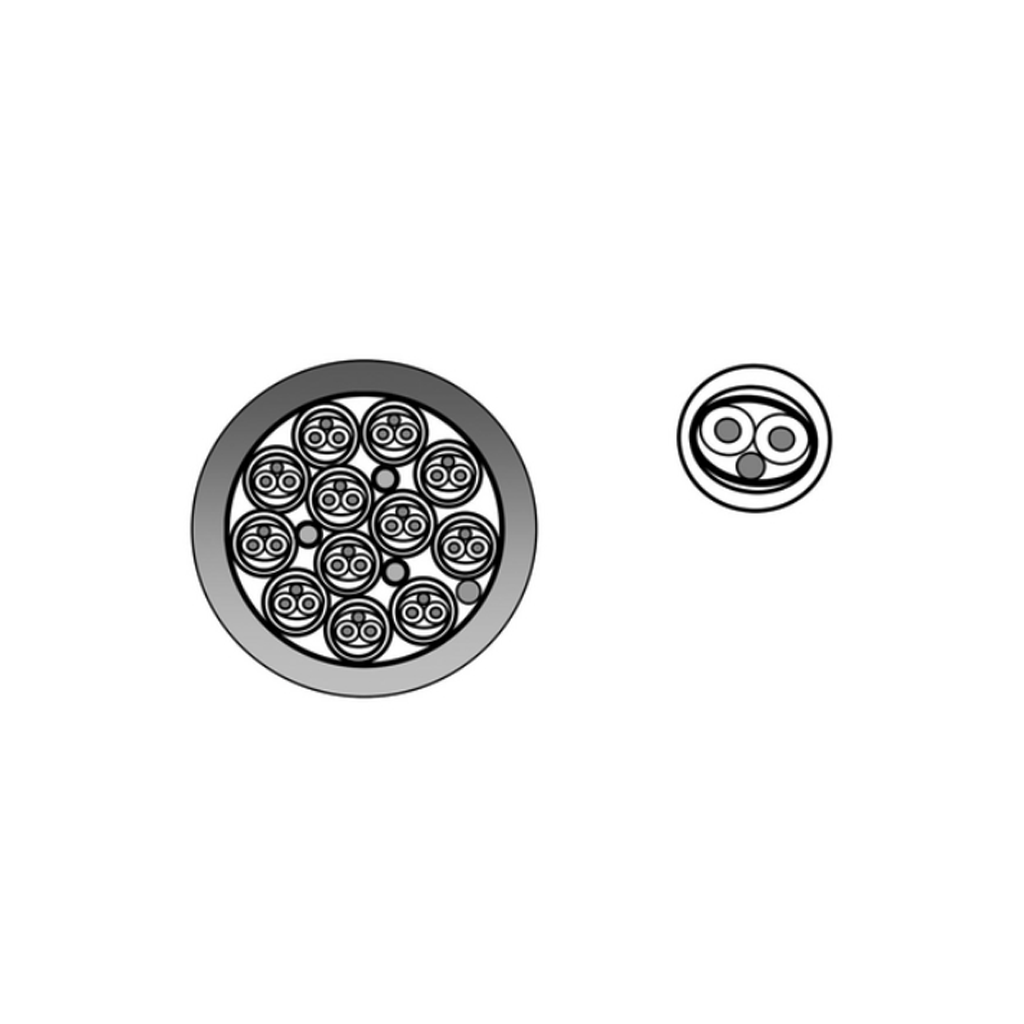

Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PE Insulation, Individually Foil Shielded and LSZH Jacketed, Overall Beldfoil® Shield, LSZH jacket, Ripcord, Flexible
Technical Specifications
| Insulation | |||
| Material | Nom. Insulation Diameter | Color Code | |
| PE – Polyethylene | 1.02 mm (0.0402 in) | Red & Black | |
| Inner Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (7×26) TC |
