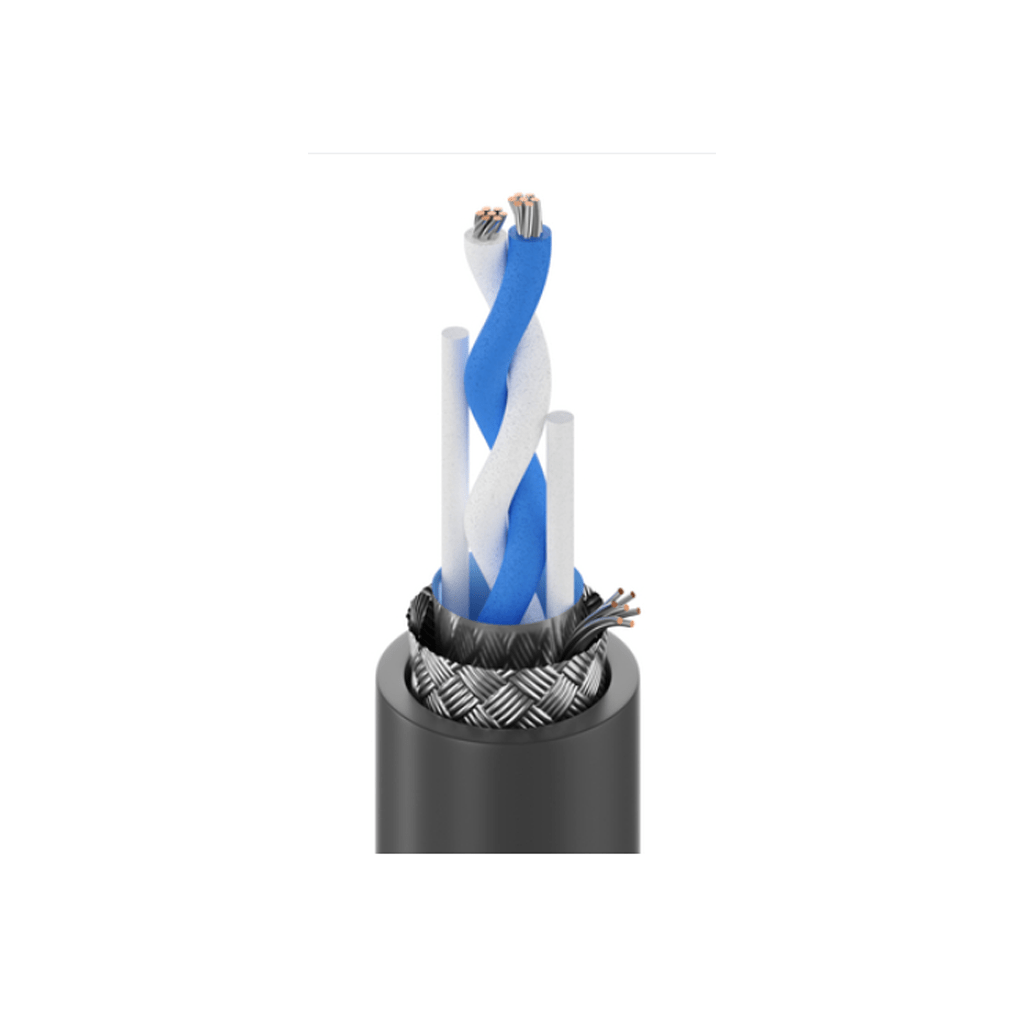

BELDEN 1696A
Digital Audio Cable, 1 Pr #22, Str TC, Foil + Braid, PVC Jkt
Product Description
Digital Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, 90% Tinned Copper Braid Shield, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PE – Polyethylene (Foam) | 0.027 in (0.69 mm) | 0.082 in (2.1 mm) | Blue & White |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC | |
| Braid | Tinned Copper (TC) | 90% | ||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.235 in (5.97 mm) | ||
