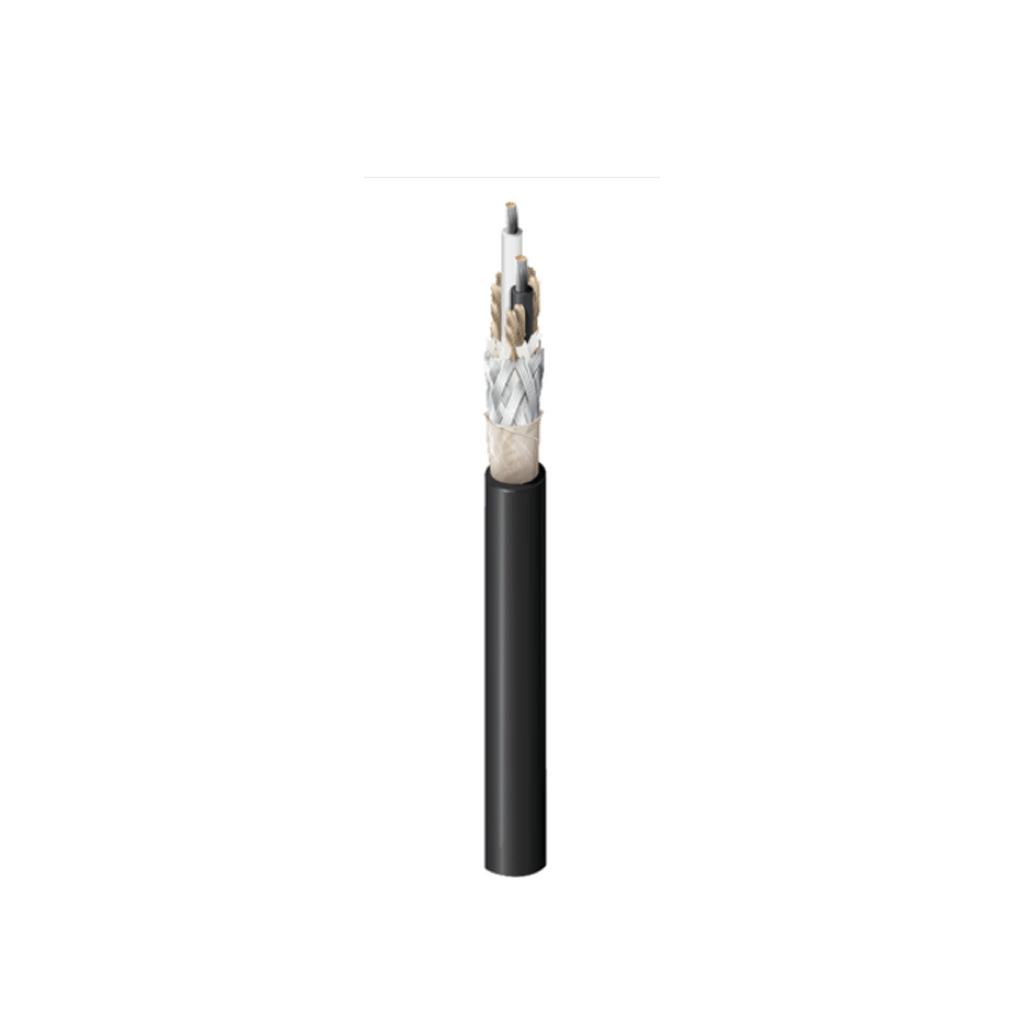

BELDEN 1776
Microphone Cable, 2 Conductor 20 AWG, TC
Product Description
20 AWG stranded (19×32) high-strength tinned alloy conductors, EPDM rubber insulation, rayon braid, high-strength tinned alloy braid shield (85% coverage), cotton wrap, EPDM jacket
Technical Specifications
| Insulation | |||
| Material | Nominal Diameter | Nominal Wall Thickness | |
| EPDM – Ethylene Propylene Diene Monomer | 0.083 in | 0.023 in | |
| Outer Shield | |||
| Type | Layer | Material | Coverage [%] |
| Braid | 1 | Tinned Copper (TC) | 85% |
| Braid | 2 | Rayon® | 85% |
