BELDEN 1800F

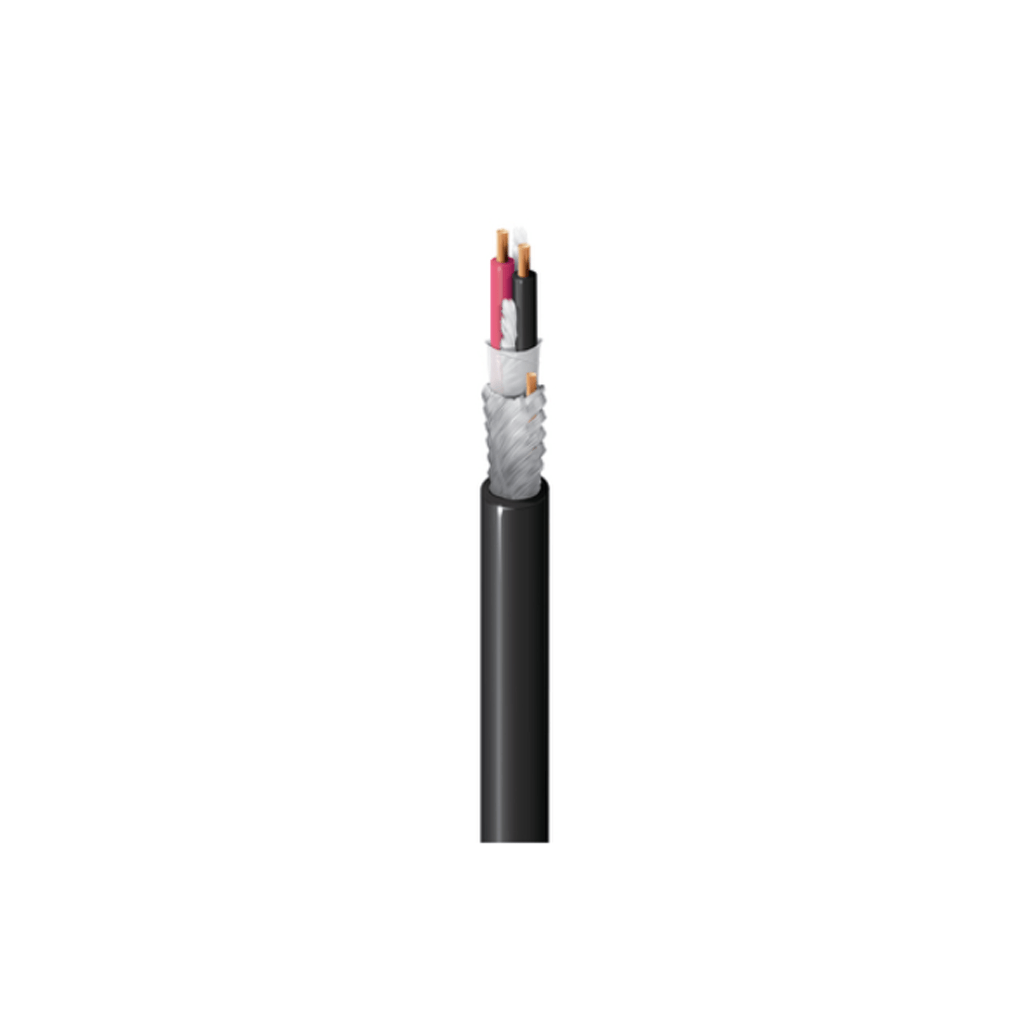

Digital Microphone Cable, 1 Pr #24 Str BC, 95% TC French Braid, PVC Jkt, CL2R, Flexible
Product Description
Digital Microphone Cable, 1 Pair 24 AWG (42×40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PE – Polyethylene (Foam) | 0.017 in (0.43 mm) | 0.058 in (1.5 mm) | Red & Black |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | Notes |
