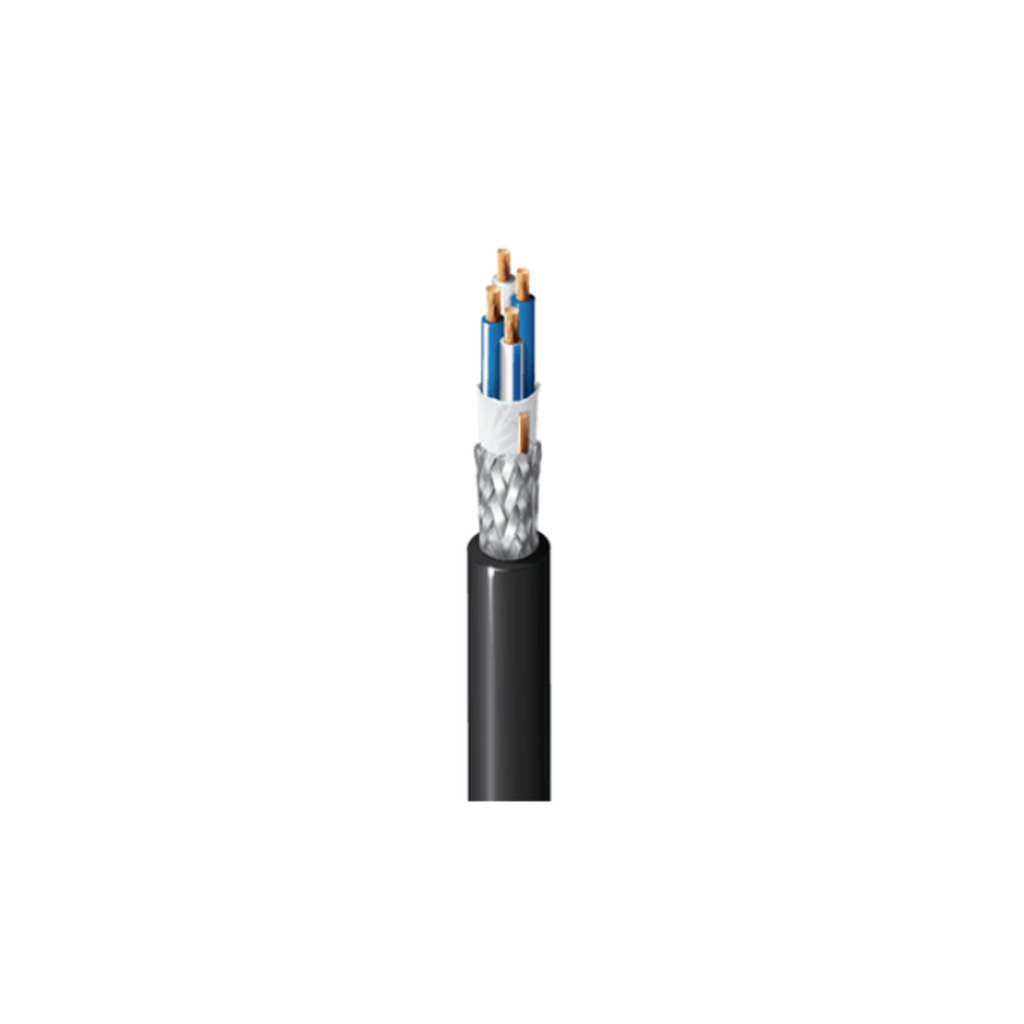

BELDEN 1804A
Microphone Cable, Star Quad, 4 C #28 Str Silvered Copper Alloy, 80% TC Braid, PVC Jkt
Product Description
Microphone Cable, Star Quad, 4 Conductor 28 AWG (19 x 40) High Conductivity Silvered Copper Alloy, PP insulation, 80% Tinned Copper Braid Shield, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.03 in (0.76 mm) | Blue, White, Blue/White Stripe, White/Blue Stripe |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Tinned Copper (TC) | 80% | ||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.115 in (2.92 mm) | ||
